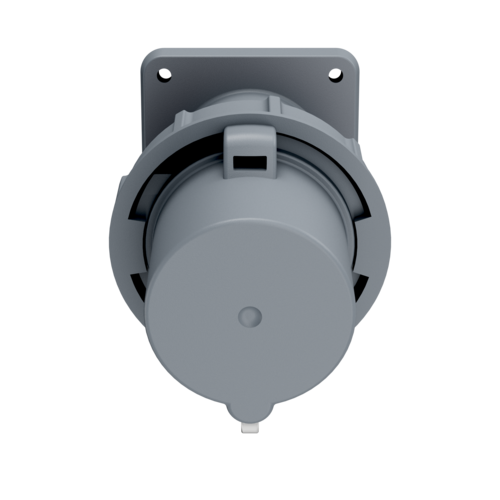

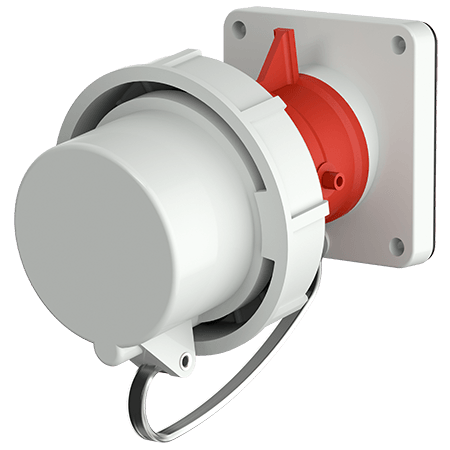

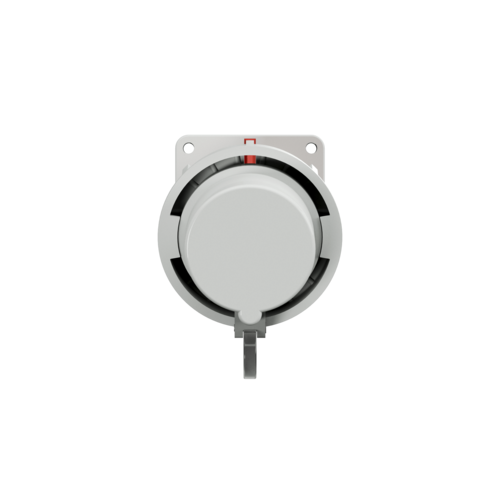

MENNEKES Panel mounted inlet 1256
MENNEKES Panel mounted inlet 1256 images3d

Panel mounted inlet 1256

Ampere 16 A 32 A 63 A
Poles
Voltage
Clock position
  • screw terminals
  • with protective cover
  • Part no.1256
  • EAN4015394008897
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted inlet 1256

Ampere 63 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Weight 659 g
Certifications EAC

Datasheets & Downloads

Panel mounted inlet 1256

Product infoPanel mounted inlet 1256 PDF, 276 KB
Dimensional drawing portraitPanel mounted inlet 1256 PNG, 46 KB
Dimensional drawing landscape formatPanel mounted inlet 1256 PNG, 119 KB

Directives

Panel mounted inlet 1256

REACh
RoHS

Appropriate accessories

Panel mounted inlet 1256

MENNEKES Protective cover 40787

Protective cover

Part no. 40787

for watertight plugs, wall mounted and panel mounted inlets 63 A, 3 p - 5 p
