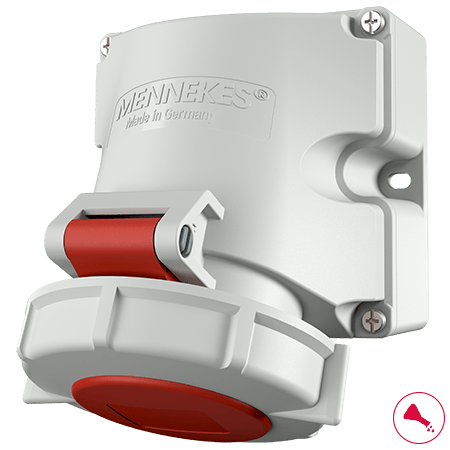

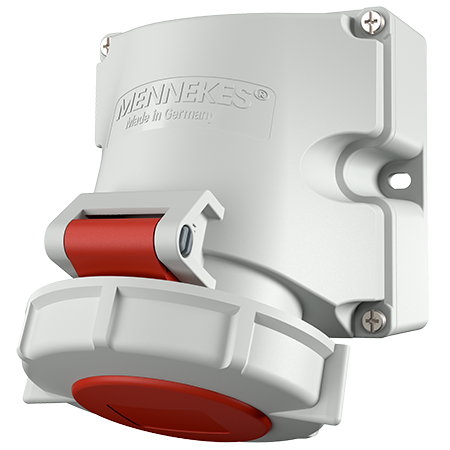

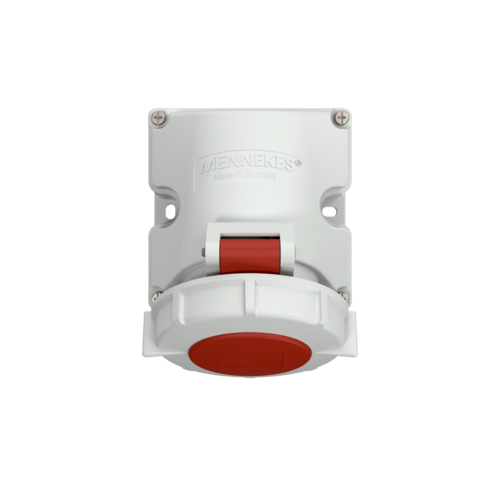

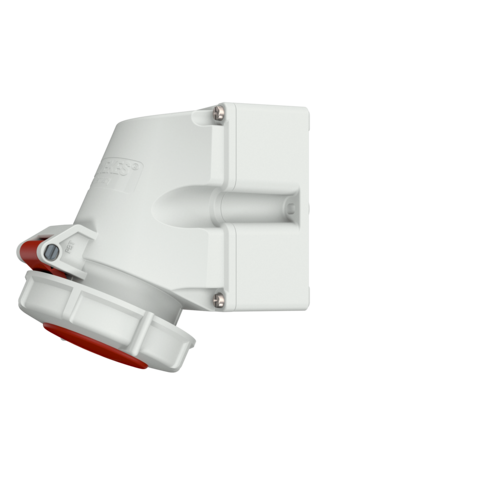

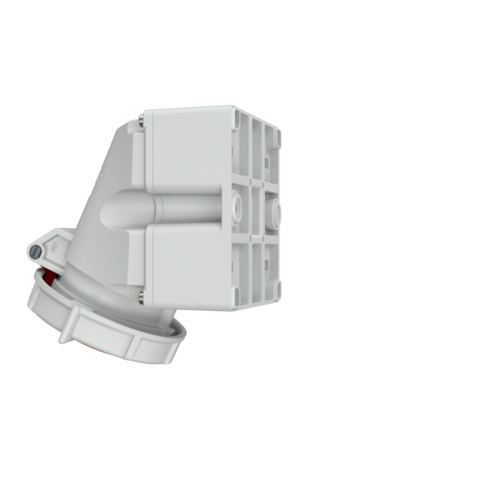

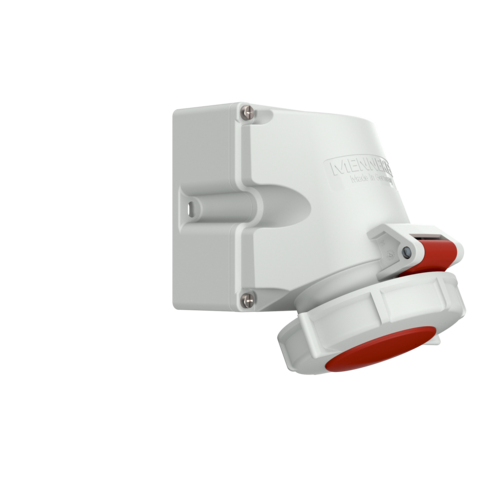

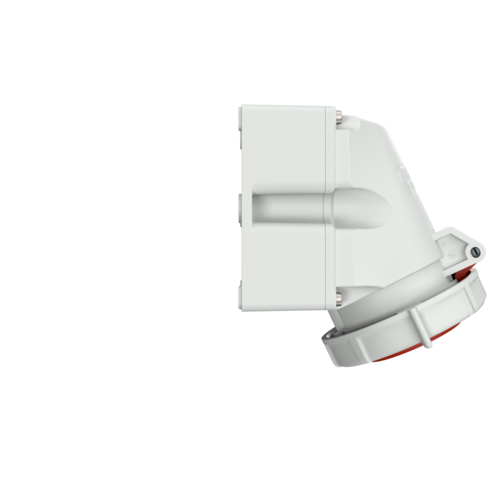

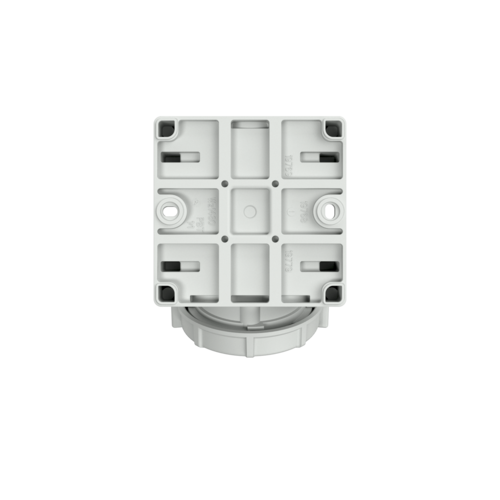

Wall mounted receptacle with TwinCONTACT 9106
The waterproof and dustproof CEE wall mounted receptacle for use in harsh environmental conditions.
Voltage
Clock position
- screwless spring terminals
- highly resistant to chemicals
- suitable for through wiring
- with 2 external fixing points
- receptacles are designed for adding an auxiliary contact switch
- enclosure base can be turned 180°
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Technical specifications
Wall mounted receptacle with TwinCONTACT 9106
| Ampere | 16 A |
|---|---|
| Poles | 3 p |
| Voltage | 400 V |
| Clock position | 9 h |
| Hertz | 50-60 Hz |
| Connection technology | Screwless - TwinCONTACT |
| Contact | standard |
| Protection type | IP67 |
| Enclosure material | Plastic, high resistance to chemicals / AMELAN |
| Weight | 320 g |
| Certifications | EAC |
