MENNEKES Wall mounted receptacle with TwinCONTACT 1756
MENNEKES Wall mounted receptacle with TwinCONTACT 1756 images3d

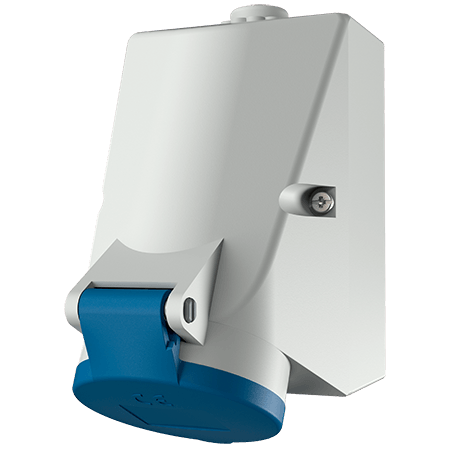

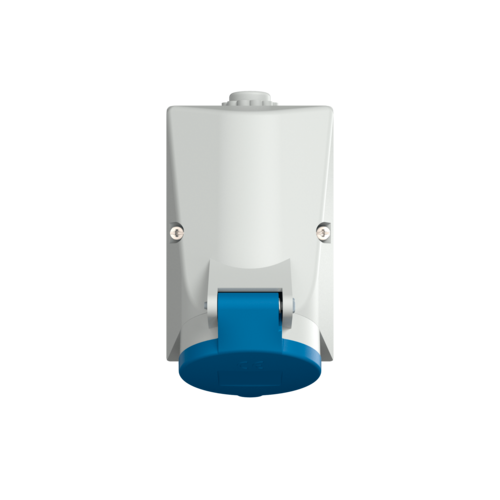

Wall mounted receptacle with TwinCONTACT 1756

The universal CEE receptacle for trade and industry with freely selectable connection direction.

Poles
Voltage
Clock position
  • screwless spring terminals
  • suitable for through wiring
  • internal fixing
  • enclosure base can be turned 180°
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.1756
  • EAN4015394213802
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
TwinCONTACT

Screwless - TwinCONTACT

Screwless spring terminals

Technical specifications

Wall mounted receptacle with TwinCONTACT 1756

Ampere 16 A
Poles 5 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP44
Weight 288 g
Certifications EAC
