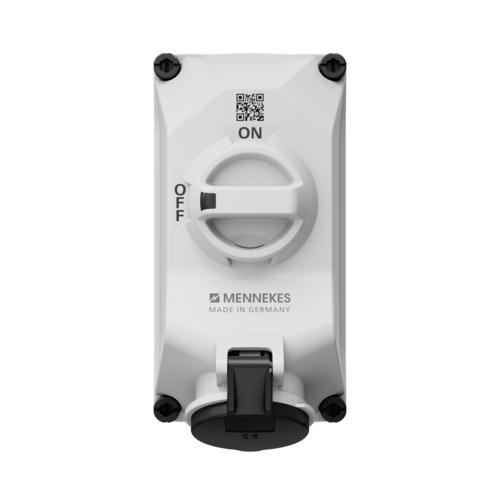

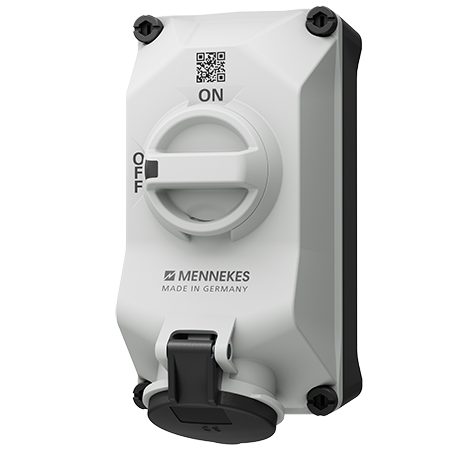

Wall mounted receptacle R 5701405G
Ampere
16 A
Poles
Voltage
Clock position
- screw terminals
- pre-wired for installation
- X-CONTACT
- switched
- mechanical DUO-interlock
- highly heat resistant contact carrier
- nickel plated contacts
- 3 pole switch
- receptacles can be padlocked
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Technical specifications
Wall mounted receptacle R 5701405G
| Ampere | 16 A |
|---|---|
| Poles | 4 p |
| Voltage | 600-690 V |
| Clock position | 5 h |
| Hertz | 50-60 Hz |
| Connection technology | Screw terminals |
| Contact |
nickel plated contacts X-CONTACT highly heat resistant contact carrier |
| Protection type | IP44 |
| Enclosure material | Plastic |
| Weight | 1321 g |
| Certifications |
CQC VDE |
