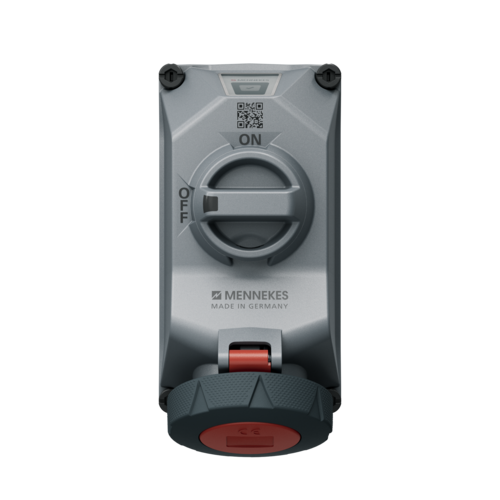

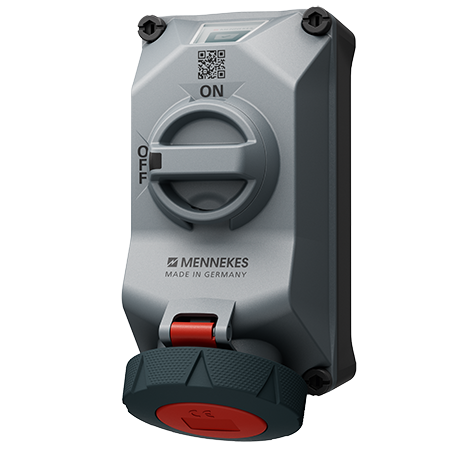

Wall mounted receptacle DUOi R 5814506TC
Voltage
Clock position
- screw terminals
- LED voltage indicator
- pre-wired for installation
- X-CONTACT
- highly resistant to chemicals
- switched
- mechanical DUO-interlock
- highly heat resistant contact carrier
- switched N conductor, with auxiliary contact switch 2 NC and 2 NO
- receptacles can be padlocked
- sealed against dust, temporary submersion and high pressure cleaning
- enclosure base without pre-formed cable entry
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Technical specifications
Wall mounted receptacle DUOi R 5814506TC
| Ampere | 32 A |
|---|---|
| Poles | 5 p |
| Voltage | 400 V |
| Clock position | 6 h |
| Hertz | 50-60 Hz |
| Connection technology | Screw terminals |
| Contact |
nickel plated contacts X-CONTACT highly heat resistant contact carrier |
| Protection type | IP67 / IP69 |
| Enclosure material | Plastic, high resistance to chemicals / AMELAN |
| Weight | 1454 g |
