MENNEKES Wall mounted receptacle DUOi 5613406G

Please accept marketing-cookies to watch this video.

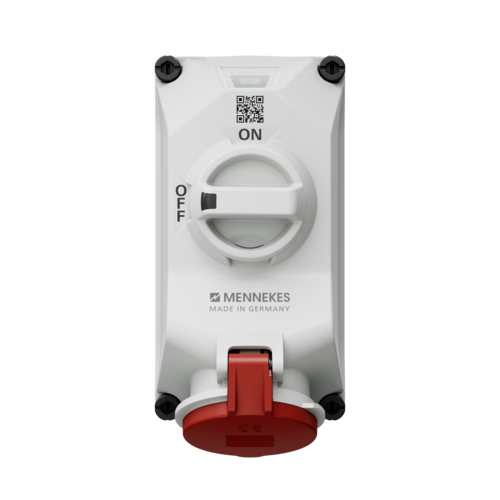

Wall mounted receptacle DUOi 5613406G

Name: Wall mounted receptacle DUOi
Brand: MENNEKES
SKU: 5613406G

Twice the protection - our DUOi wall mounted receptacle impresses with its particularly secure DUO locking mechanism. This prevents the plug from being pulled out under current load, and when switched...Read more

Ampere 16 A 32 A

Poles

Voltage

Clock position

screw terminals
LED voltage indicator
pre-wired for installation
X-CONTACT

switched
mechanical DUO-interlock
3 pole switch
receptacles can be padlocked

Part no.5613406G
EAN4015394304036
Std. Pack. 1 Qty.

Screw terminals

Standard screw terminals

X-CONTACT®

Innovative contact sleeve technology

Technical specifications

Wall mounted receptacle DUOi 5613406G

Ampere	32 A
Poles	4 p
Voltage	400 V
Clock position	6 h
Hertz	50-60 Hz
Connection technology	Screw terminals
Contact	X-CONTACT
Protection type	IP44
Enclosure material	Plastic
Weight	1325 g
Certifications	VDE CQC
