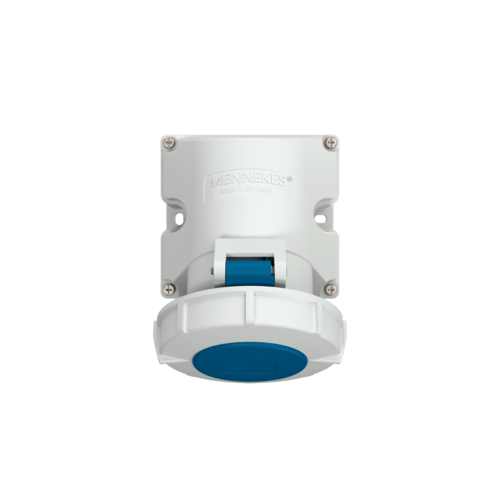

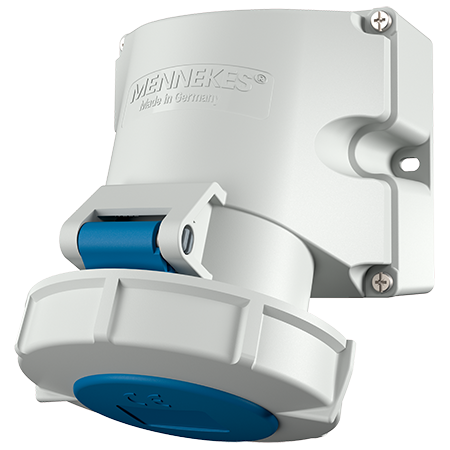

MENNEKES Wall mounted receptacle 9351
MENNEKES Wall mounted receptacle 9351 images3d

Wall mounted receptacle 9351

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • highly resistant to chemicals
  • with 2 external fixing points
  • enclosure base can be turned 180°
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.9351
  • EAN4015394280606
  • Std. Pack. 5
Resistant to chemicals

Resistant to chemicals

Increased chemical resistance

Read more

Technical specifications

Wall mounted receptacle 9351

Ampere 32 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Enclosure material Plastic, high resistance to chemicals / AMELAN
Weight 515 g
Certifications VDE

Datasheets & Downloads

Wall mounted receptacle 9351

Product infoWall mounted receptacle 9351 PDF, 204 KB
Manufacturer‘s declarationWall mounted receptacle 9351 PDF, 38 KB
CAD data STPWall mounted receptacle 9351 ZIP, 2 MB
CAD data 3D DWGWall mounted receptacle 9351 ZIP, 10 KB
Dimensional drawing portraitWall mounted receptacle 9351 PNG, 133 KB
Dimensional drawing landscape formatWall mounted receptacle 9351 PNG, 135 KB

Directives

Wall mounted receptacle 9351

REACh
RoHS
