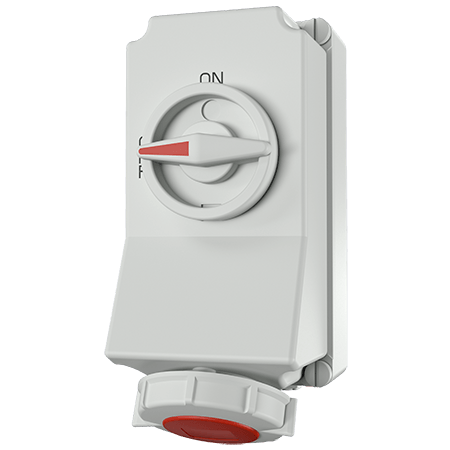

Wall mounted receptacle 7307
Voltage
Clock position
- screw terminals
- switched
- mechanical DUO-interlock
- highly heat resistant contact carrier
- nickel plated contacts
- 6 pole switch with 2 auxiliary contacts (1 NO and 1 NC)
- receptacles can be padlocked
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Technical specifications
Wall mounted receptacle 7307
| Ampere | 32 A |
|---|---|
| Poles | 7 p |
| Voltage | 400 V |
| Clock position | 6 h |
| Hertz | 50-60 Hz |
| Connection technology | Screw terminals |
| Contact |
highly heat resistant contact carrier nickel plated contacts |
| Protection type | IP67 |
| Enclosure material | Plastic |
| Weight | 1625 g |
| Certifications | EAC |
Frequently asked questions about the product
Can you lock the main switch of DUO receptacles even in the activated state?
No, the deactivation function is a safety aspect.
What do I use a 7-pin device for?
7-pin plugs and sockets can be used for any application that requires additional contacts.
