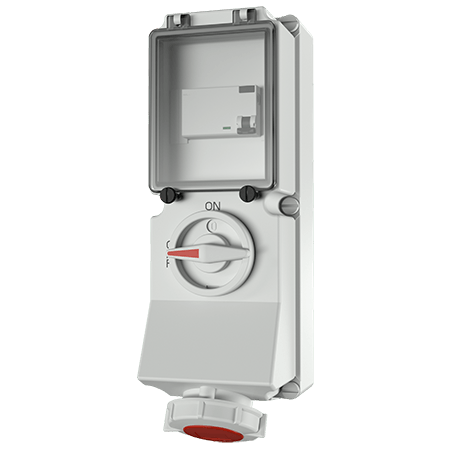

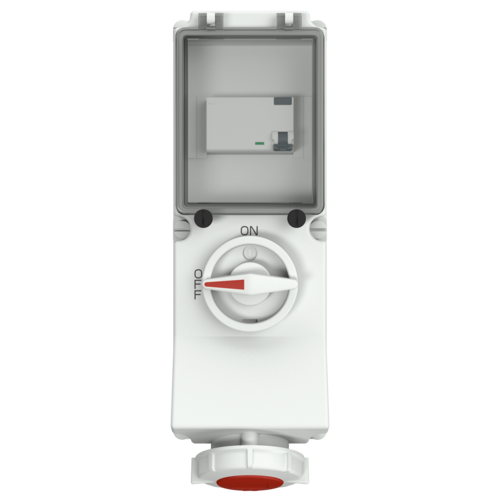

MENNEKES Wall mounted receptacle 7249
MENNEKES Wall mounted receptacle 7249 images3d

Wall mounted receptacle 7249

Poles
Voltage
Clock position
  • screw terminals
  • switched
  • mechanical DUO-interlock
  • RCD (0.03A)
  • other leakage current ratings on request
  • receptacles can be padlocked
  • Part no.7249
  • EAN4015394124719
  • Std. Pack. 2
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 7249

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Enclosure material Plastic
Weight 2416 g
Certifications EAC

Directives

Wall mounted receptacle 7249

Frequently asked questions about the product

Can you lock the main switch of DUO receptacles even in the activated state?

No, the deactivation function is a safety aspect.

To the questions and answers
