MENNEKES

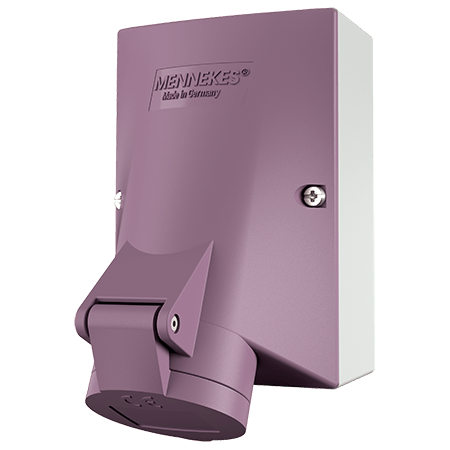

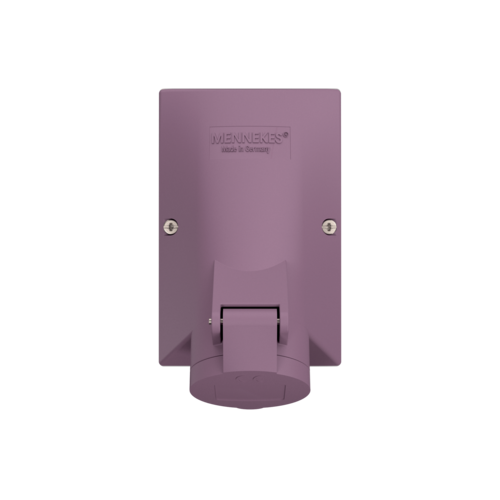

MENNEKES Wall mounted receptacle 597
MENNEKES Wall mounted receptacle 597 images3d

Wall mounted receptacle 597

Poles
Voltage
  • screw terminals
  • internal fixing
  • one cable entry at top and two blind entries (can be cut out) at bottom
  • lower part of enclosure base can be turned 180°
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.597
  • EAN4015394004400
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 597

Ampere 32 A
Poles 3 p
Voltage 20-25 V
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Weight 278 g
Certifications EAC

Directives

Wall mounted receptacle 597

Appropriate accessories

Wall mounted receptacle 597

MENNEKES Wall mounted receptacle 734

Wall mounted receptacle

Part no. 734

with highly heat resistant contact carrier, nickel plated contacts, internal fixing, one cable entry at the top, two blind entries (can be cut out) at the bottom, enclosure base can be turned 180°
