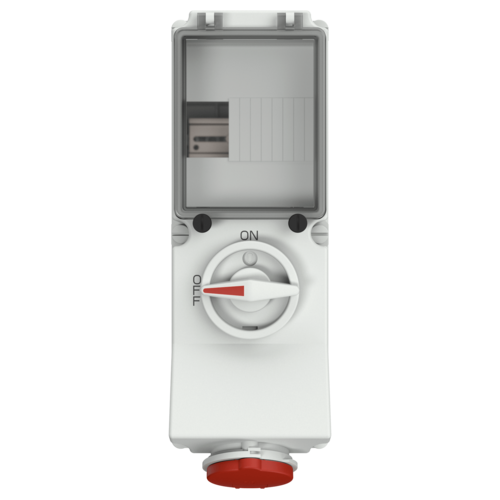

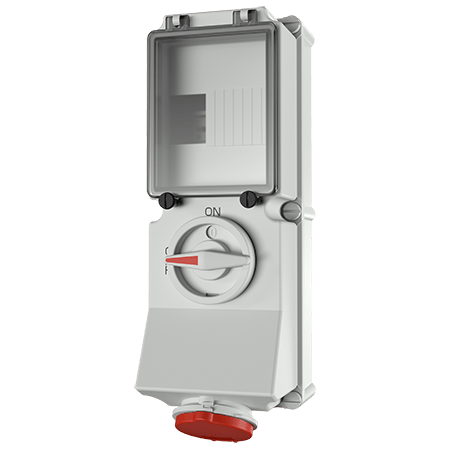

MENNEKES Wall mounted receptacle 5613A
MENNEKES Wall mounted receptacle 5613A images3d

Wall mounted receptacle 5613A

Poles
Voltage
Clock position
  • screw terminals
  • switched
  • mechanical DUO-interlock
  • DIN rail
  • receptacles can be padlocked
  • Part no.5613A
  • EAN4015394028246
  • Std. Pack. 2
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 5613A

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Enclosure material Plastic
Weight 2205 g
Certifications CQC

Directives

Wall mounted receptacle 5613A

Frequently asked questions about the product

Can you lock the main switch of DUO receptacles even in the activated state?

No, the deactivation function is a safety aspect.
