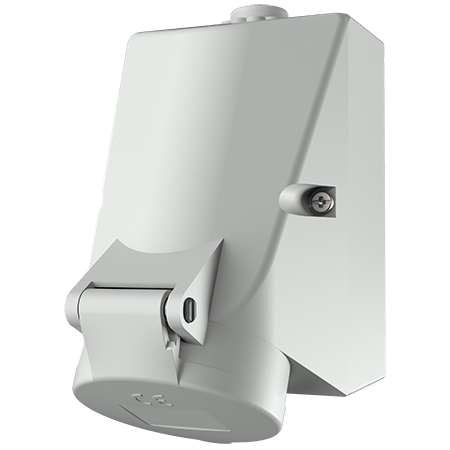

MENNEKES Wall mounted receptacle 2840A
MENNEKES Wall mounted receptacle 2840A images3d

Wall mounted receptacle 2840A

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • internal fixing
  • one cable entry at top and one blind entry (can be cut out) at the bottom
  • enclosure base can be turned 180°
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.2840A
  • EAN4015394016694
  • Std. Pack. 10

Technical specifications

Wall mounted receptacle 2840A

Ampere 16 A
Poles 5 p
Voltage 50-500 V
Clock position 1 h
Connection technology Screw terminals
Contact standard
Protection type IP44
Weight 333 g
Certifications VDE

Datasheets & Downloads

Wall mounted receptacle 2840A

Product infoWall mounted receptacle 2840A PDF, 178 KB
Dimensional drawing portraitWall mounted receptacle 2840A PNG, 97 KB
Dimensional drawing landscape formatWall mounted receptacle 2840A PNG, 98 KB

Directives

Wall mounted receptacle 2840A

REACh
RoHS

Appropriate accessories

Wall mounted receptacle 2840A

MENNEKES Weather shield 15542

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm
