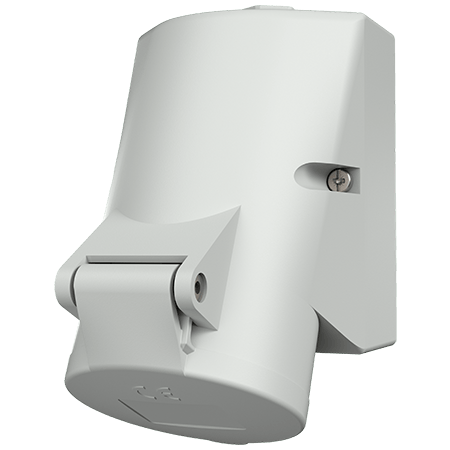

MENNEKES Wall mounted receptacle 2684

Wall mounted receptacle 2684

Ampere 16 A
Poles
Voltage
Clock position
  • screw terminals
  • internal fixing
  • one cable entry at top and one blind entry (can be cut out) at the bottom
  • enclosure base can be turned 180° (for 5-pole design)
  • Part no.2684
  • EAN4015394016052
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 2684

Ampere 16 A
Poles 3 p
Voltage 50-500 V
Clock position 1 h
Connection technology Screw terminals
Contact standard
Protection type IP44
Weight 180 g
Certifications VDE

Directives

Wall mounted receptacle 2684
