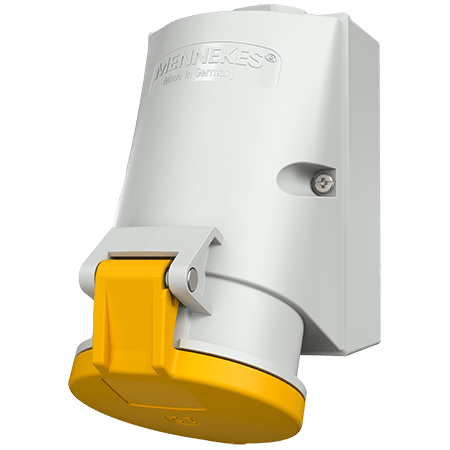

MENNEKES Wall mounted receptacle 1420

Wall mounted receptacle 1420

Poles
Voltage
Clock position
  • screw terminals
  • internal fixing
  • one cable entry at top, two blind cable entries (can be cut out) at bottom
  • enclosure base can be turned 180°
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.1420
  • EAN4015394010517
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 1420

Ampere 32 A
Poles 3 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Weight 346 g
Certifications EAC
CQC

Directives

Wall mounted receptacle 1420

Appropriate accessories

Wall mounted receptacle 1420

MENNEKES Weather shield 15542

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm
