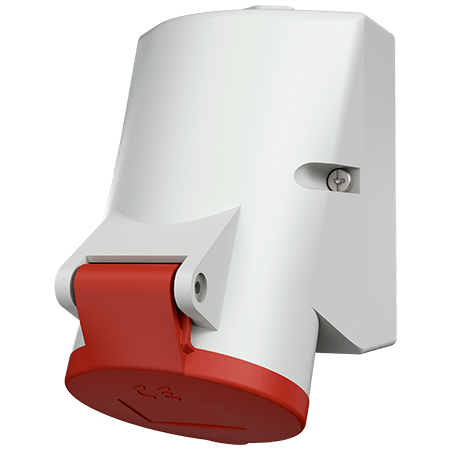

MENNEKES Wall mounted receptacle 111

Wall mounted receptacle 111

Ampere 16 A
Poles
Voltage
Clock position
  • screw terminals
  • internal fixing
  • one cable entry at top and one blind entry (can be cut out) at the bottom
  • enclosure can be turned 180°
  • Part no.111
  • EAN4015394000501
  • Std. Pack. 10 Qty.

Technical specifications

Wall mounted receptacle 111

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Weight 258 g
Certifications VDE

Datasheets & Downloads

Wall mounted receptacle 111

Product infoWall mounted receptacle 111 PDF, 164 KB
CAD data STPWall mounted receptacle 111 ZIP, 691 KB
CAD data 3D DWGWall mounted receptacle 111 ZIP, 1 MB
Dimensional drawing portraitWall mounted receptacle 111 PNG, 96 KB
Dimensional drawing landscape formatWall mounted receptacle 111 PNG, 97 KB

Directives

Wall mounted receptacle 111

REACh
RoHS
