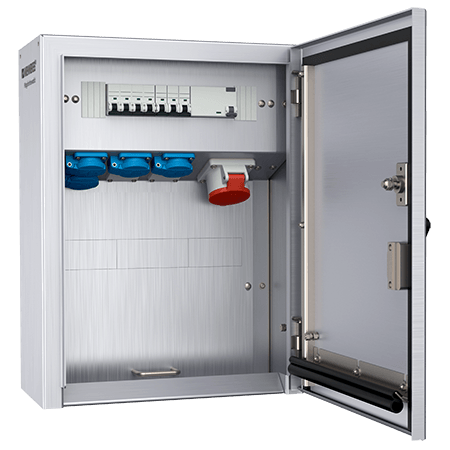

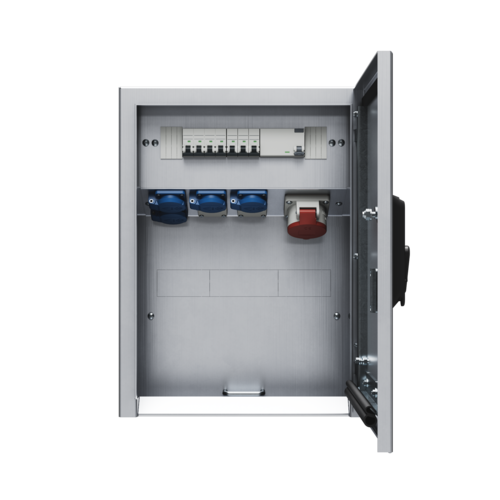

Stainless steel receptacle combination 83725
CEE 16 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
- stainless steel enclosure (material 1.4301)
- surface with a flat finish (K240), material 1.4571 on request
- protection type IP 44 with closed door
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Technical specifications
Stainless steel receptacle combination 83725
| CEE 16 A, 5 p, 400 V | 1 |
|---|---|
| SCHUKO® 16 A, 230 V | 4 |
| Fusing |
|
| Pre-fuse max. | 40 A |
| InA | 32 A |
| RDF | 0.8 |
| Connection/feeder cable |
|
| Protection type | IP44 |
| Enclosure material | Metal |
| Weight | 21700 g |
| Height | 530 mm |
| Width | 400 mm |
| Depth | 220 mm |
| Certifications | EAC |
| Storage receptacle combination | B |
