MENNEKES Power post enclosure 18503AG
MENNEKES Power post enclosure 18503AG images3d

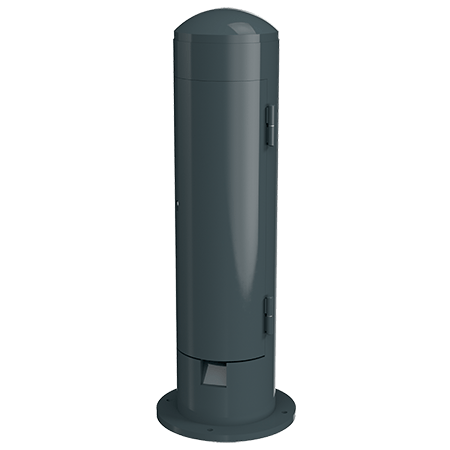

Power post enclosure 18503AG

  • from steel tube
  • wall thickness 4.5 mm
  • electro galvanised
  • yellow chromated and powder-coated
  • colour: anthracite (RAL 7016)
  • hinged supply aperture with safety lock
  • dimensions (H x Ø): 1050 x 273 mm (inside)
  • weight: approx. 60 kg
  • aperture at bottom: (H x W) 60 x 70 mm
  • fixing flange: Ø 390 mm
  • with 4 fixing holes 15.5 mm
  • for fixing to an existing fundament
  • Part no.18503AG
  • EAN4015394209720
  • Std. Pack. 1

Technical specifications

Power post enclosure 18503AG

Directives

Power post enclosure 18503AG

Appropriate accessories

Power post enclosure 18503AG

MENNEKES Mounting plate 15617

Mounting plate

Part no. 15617

for power post 83685 and power post enclosure 18503AG
