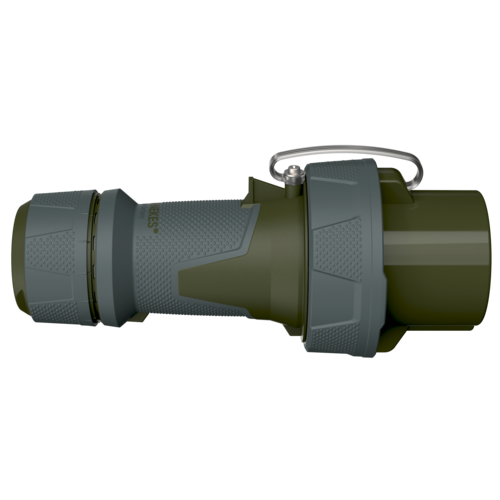

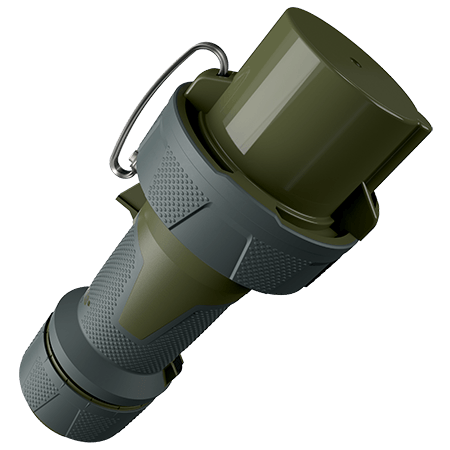

MENNEKES Plug PowerTOP Xtra TM 24970
MENNEKES Plug PowerTOP Xtra TM 24970 images3d

Plug PowerTOP Xtra TM 24970

Ampere 63 A 125 A
Poles
Voltage
Clock position
  • screw terminals
  • frame terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • cable gland and external cable grip
  • with protective cap
  • (form CP)
  • Part no.24970
  • EAN4015394247753
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Plug PowerTOP Xtra TM 24970

Ampere 125 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP67
Weight 1640 g
Certifications VDE
CQC

Datasheets & Downloads

Plug PowerTOP Xtra TM 24970

Product infoPlug PowerTOP Xtra TM 24970 PDF, 139 KB
CAD data STPPlug PowerTOP Xtra TM 24970 ZIP, 2 MB
CAD data 3D DWGPlug PowerTOP Xtra TM 24970 ZIP, 1 MB
Mounting instructionsPlug PowerTOP Xtra TM 24970 PDF, 1 MB
Dimensional drawing portraitPlug PowerTOP Xtra TM 24970 PNG, 44 KB
Dimensional drawing landscape formatPlug PowerTOP Xtra TM 24970 PNG, 44 KB

Directives

Plug PowerTOP Xtra TM 24970

REACh
RoHS

Appropriate accessories

Plug PowerTOP Xtra TM 24970

MENNEKES Protective cover TM 24995

Protective cover TM

Part no. 24995

for watertight plugs and inlets, (form G)
