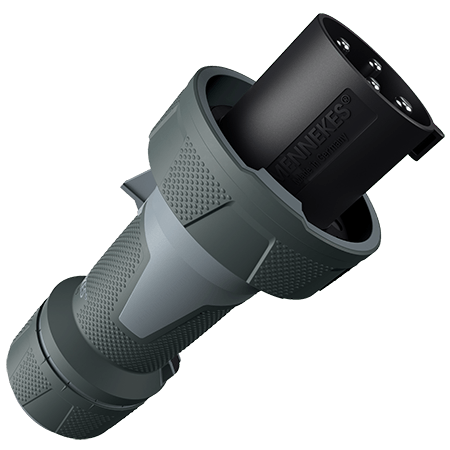

MENNEKES Plug PowerTOP Xtra R 13238

Plug PowerTOP Xtra R 13238

Ampere 125 A
Poles
Voltage
Clock position
  • screw terminals
  • rubberised grip area
  • frame terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • cable gland and sealing
  • strain relief and protection against kinking
  • enclosure with thread lock
  • two safety slides
  • Part no.13238
  • EAN4015394240945
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Plug PowerTOP Xtra R 13238

Ampere 125 A
Poles 4 p
Voltage 600-690 V
Clock position 5 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
highly heat resistant contact carrier
Protection type IP67
Weight 1400 g
Certifications EAC

Directives

Plug PowerTOP Xtra R 13238

Appropriate accessories

Plug PowerTOP Xtra R 13238

MENNEKES Protective cover 40788

Protective cover

Part no. 40788

for watertight plugs, wall mounted and panel mounted inlets 125 A, 3 p - 5 p
