MENNEKES

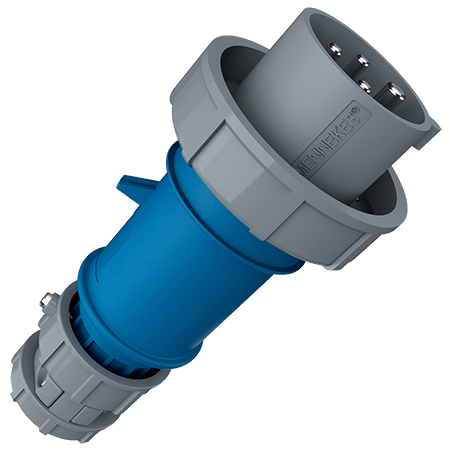

MENNEKES Plug PowerTOP 3811

Plug PowerTOP 3811

Poles
Voltage
Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • cable gland and external cable grip
  • Part no.3811
  • EAN4015394099406
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Plug PowerTOP 3811

Ampere 16 A
Poles 4 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP67
Weight 221 g
Certifications CQC

Directives

Plug PowerTOP 3811

Appropriate accessories

Plug PowerTOP 3811

MENNEKES Protective cover 40778

Protective cover

Part no. 40778

for watertight plugs, wall mounted and panel mounted inlets 16 A, 4 p

MENNEKES Hanging clip 15453000

Hanging clip

Part no. 15453000

for PowerTOP plugs and connectors
