Show all 7-pole / Show all Plug AM-TOP

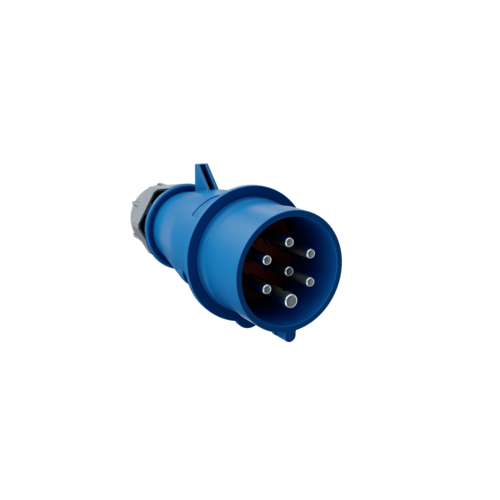

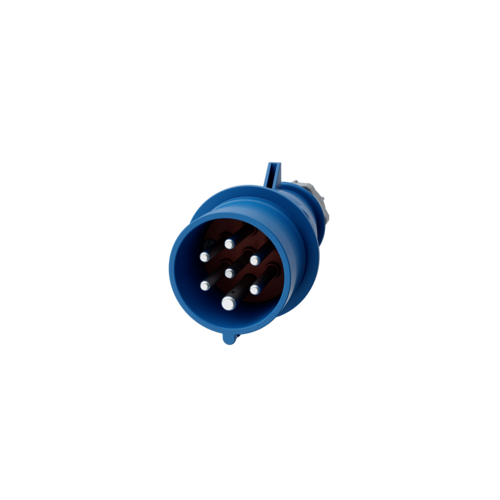

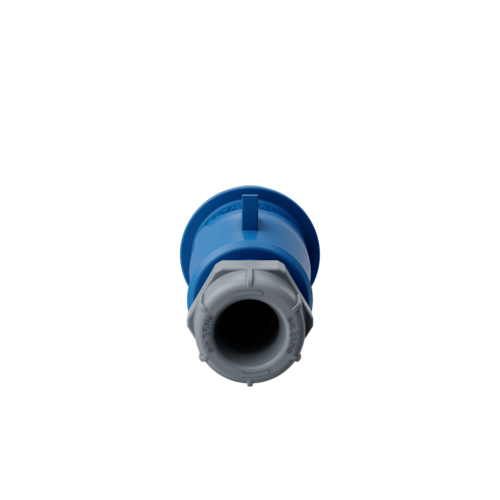

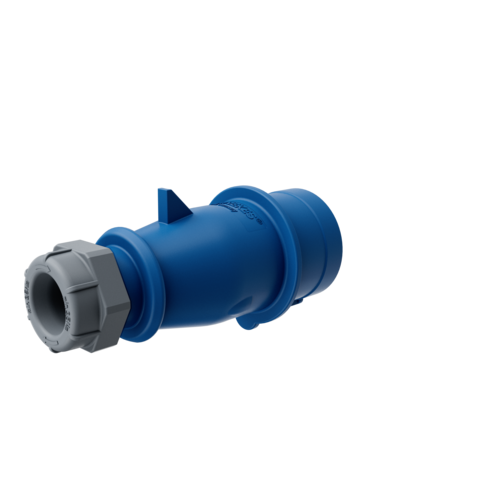

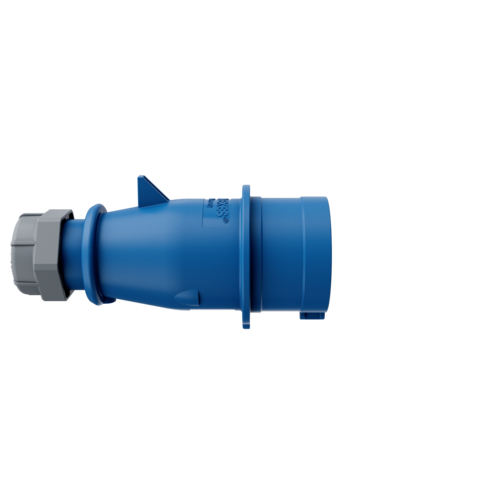

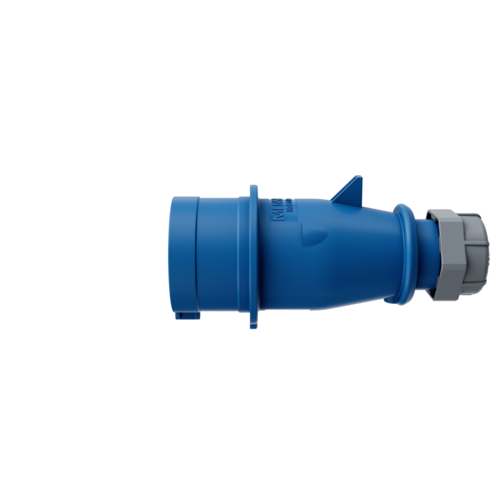

MENNEKES Plug AM-TOP 741
MENNEKES Plug AM-TOP 741 images3d

Plug AM-TOP 741

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.741
  • EAN4015394005650
  • Std. Pack. 10

Technical specifications

Plug AM-TOP 741

Ampere 16 A
Poles 7 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP44
Weight 195 g
Certifications EAC
CQC

Datasheets & Downloads

Plug AM-TOP 741

Product infoPlug AM-TOP 741 PDF, 136 KB
Mounting instructionsPlug AM-TOP 741 PDF, 2 MB
Dimensional drawing portraitPlug AM-TOP 741 PNG, 64 KB
Dimensional drawing landscape formatPlug AM-TOP 741 PNG, 64 KB

Directives

Plug AM-TOP 741

REACh
RoHS
