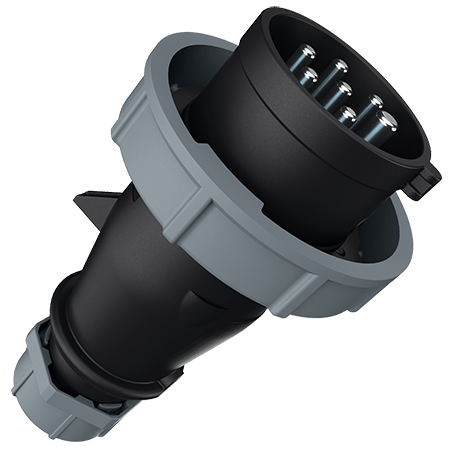

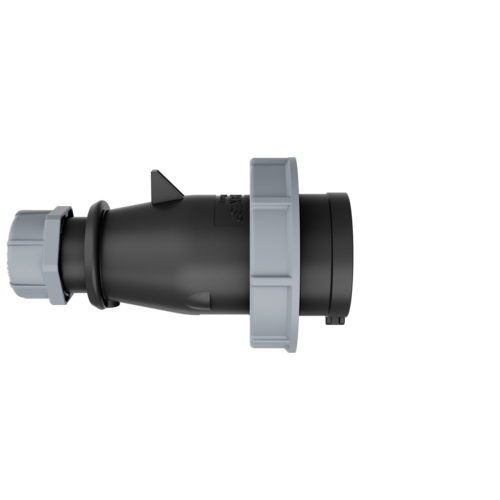

MENNEKES Plug AM-TOP 3913
MENNEKES Plug AM-TOP 3913 images3d

Plug AM-TOP 3913

Poles
Voltage
Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.3913
  • EAN4015394099857
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Plug AM-TOP 3913

Ampere 16 A
Poles 7 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP67
Weight 245 g
Certifications CQC

Directives

Plug AM-TOP 3913

Appropriate accessories

Plug AM-TOP 3913

MENNEKES Protective cover 40785

Protective cover

Part no. 40785

for watertight plugs, wall mounted and panel mounted inlets 16 A, 5 p + 7 p

Frequently asked questions about the product

What do I use a 7-pin device for?

7-pin plugs and sockets can be used for any application that requires additional contacts.

To the questions and answers
