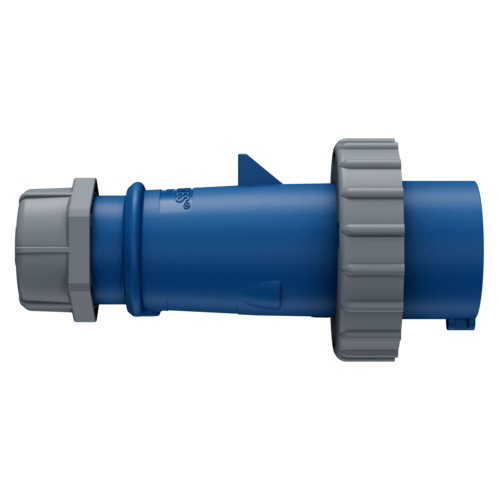

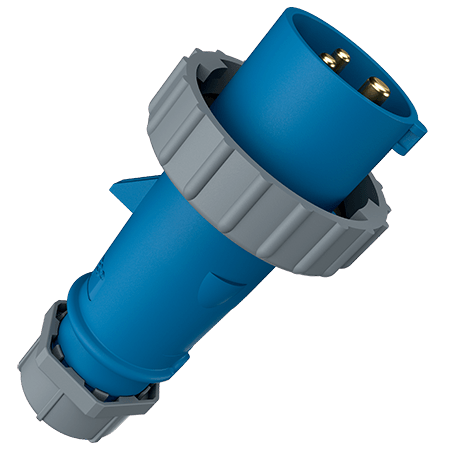

MENNEKES Plug AM-TOP 278
MENNEKES Plug AM-TOP 278 images3d

Plug AM-TOP 278

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.278
  • EAN4015394001904
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Plug AM-TOP 278

Ampere 16 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Weight 160 g
Certifications VDE
CQC

Datasheets & Downloads

Plug AM-TOP 278

Product infoPlug AM-TOP 278 PDF, 154 KB
Manufacturer‘s declarationPlug AM-TOP 278 ZIP, 245 KB
CAD data STPPlug AM-TOP 278 ZIP, 631 KB
CAD data 3D DWGPlug AM-TOP 278 ZIP, 2 MB
Mounting instructionsPlug AM-TOP 278 PDF, 2 MB
Dimensional drawing portraitPlug AM-TOP 278 PNG, 90 KB
Dimensional drawing landscape formatPlug AM-TOP 278 PNG, 91 KB

Directives

Plug AM-TOP 278

REACh
RoHS

Appropriate products

Plug AM-TOP 278 with IP67

MENNEKES Panel mounted receptacle 1475

Panel mounted receptacle

Part no. 1475

  • Protection type: IP67
  • Ampere: 16 A
  • Poles: 3 p
  • Voltage: 230 V
  • Connection technology: Screw terminals
more
MENNEKES Wall mounted receptacle 9301

Wall mounted receptacle

Part no. 9301

  • Protection type: IP67
  • Ampere: 16 A
  • Poles: 3 p
  • Voltage: 230 V
  • Connection technology: Screw terminals
more
MENNEKES Wall mounted receptacle DUOi 5612306G

Wall mounted receptacle DUOi

Part no. 5612306G

  • Protection type: IP67 / IP69
  • Ampere: 16 A
  • Poles: 3 p
  • Voltage: 230 V
  • Connection technology: Screw terminals
more
MENNEKES Connector AM-TOP 540

Connector AM-TOP

Part no. 540

  • Protection type: IP67
  • Ampere: 16 A
  • Poles: 3 p
  • Voltage: 230 V
  • Connection technology: Screw terminals
more

Appropriate accessories

Plug AM-TOP 278

MENNEKES Protective cover 40784

Protective cover

Part no. 40784

for watertight plugs, wall mounted and panel mounted inlets 16 A, 3 p
