Show all Standard plugs / Show all Plug AM-TOP

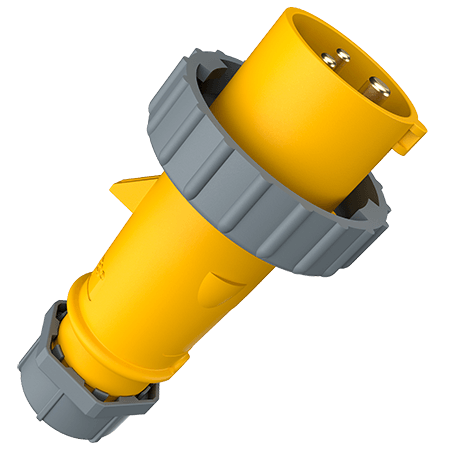

MENNEKES Plug AM-TOP 277

Plug AM-TOP 277

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.277
  • EAN4015394001898
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Plug AM-TOP 277

Ampere 16 A
Poles 3 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Weight 156 g
Certifications VDE
CQC

Datasheets & Downloads

Plug AM-TOP 277

Product infoPlug AM-TOP 277 PDF, 150 KB
Manufacturer‘s declarationPlug AM-TOP 277 PDF, 43 KB
CAD data STPPlug AM-TOP 277 ZIP, 659 KB
CAD data 3D DWGPlug AM-TOP 277 ZIP, 2 MB
Mounting instructionsPlug AM-TOP 277 PDF, 2 MB
Dimensional drawing portraitPlug AM-TOP 277 PNG, 90 KB
Dimensional drawing landscape formatPlug AM-TOP 277 PNG, 91 KB

Directives

Plug AM-TOP 277

REACh
RoHS

Appropriate products

Plug AM-TOP 277 with IP67

MENNEKES Panel mounted receptacle 1474

Panel mounted receptacle

Part no. 1474

  • Protection type: IP67
  • Ampere: 16 A
  • Poles: 3 p
  • Voltage: 110 V
  • Connection technology: Screw terminals
more
MENNEKES Wall mounted receptacle DUOi 5612304G

Wall mounted receptacle DUOi

Part no. 5612304G

  • Protection type: IP67 / IP69
  • Ampere: 16 A
  • Poles: 3 p
  • Voltage: 110 V
  • Connection technology: Screw terminals
more
MENNEKES Connector AM-TOP 539

Connector AM-TOP

Part no. 539

  • Protection type: IP67
  • Ampere: 16 A
  • Poles: 3 p
  • Voltage: 110 V
  • Connection technology: Screw terminals
more
MENNEKES Wall mounted receptacle 9300

Wall mounted receptacle

Part no. 9300

  • Protection type: IP67
  • Ampere: 16 A
  • Poles: 3 p
  • Voltage: 110 V
  • Connection technology: Screw terminals
more

Appropriate accessories

Plug AM-TOP 277

MENNEKES Protective cover 40784

Protective cover

Part no. 40784

for watertight plugs, wall mounted and panel mounted inlets 16 A, 3 p

more
