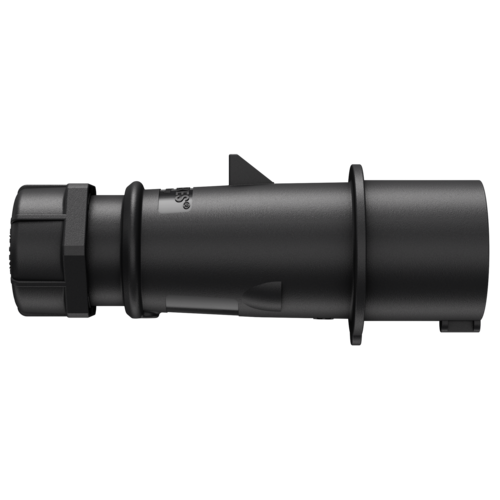

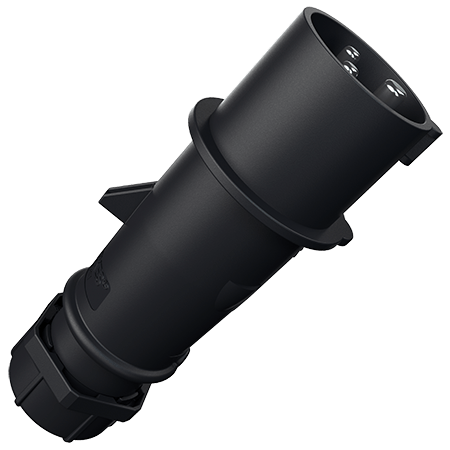

MENNEKES Plug AM-TOP 260ZD
MENNEKES Plug AM-TOP 260ZD images3d

Plug AM-TOP 260ZD

Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • highly heat resistant contact carrier
  • nickel plated contacts
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.260ZD
  • EAN4015394210320
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Plug AM-TOP 260ZD

Ampere 32 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
highly heat resistant contact carrier
Protection type IP44
Weight 249 g
Certifications EAC

Directives

Plug AM-TOP 260ZD
