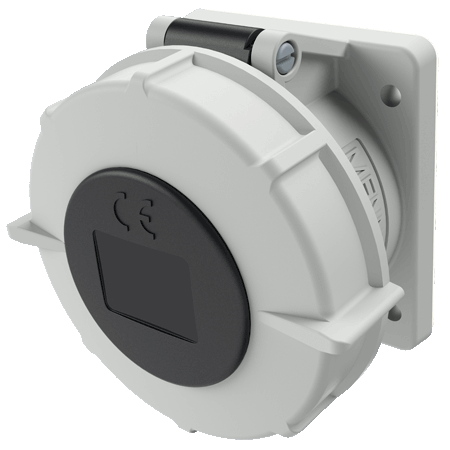

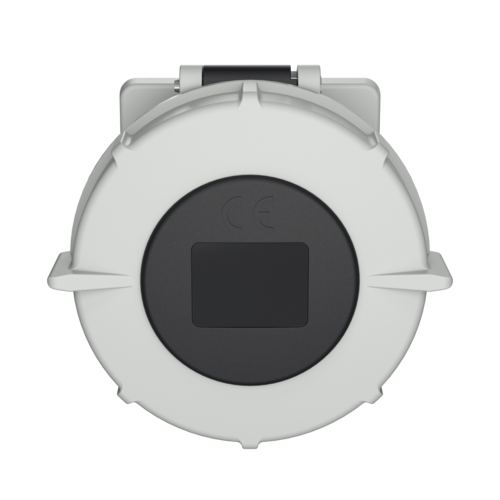

MENNEKES Panel mounted receptacle with TwinCONTACT 1815
MENNEKES Panel mounted receptacle with TwinCONTACT 1815 images3d

Panel mounted receptacle with TwinCONTACT 1815

Poles
Voltage
Clock position
  • screwless spring terminals
  • suitable for through wiring
  • straight
  • Part no.1815
  • EAN4015394215233
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
TwinCONTACT

Screwless - TwinCONTACT

Screwless spring terminals

Technical specifications

Panel mounted receptacle with TwinCONTACT 1815

Ampere 32 A
Poles 4 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP67
Flange 85x75 mm
Fixing hole 60x60 mm
Weight 253 g
Certifications VDE

Directives

Panel mounted receptacle with TwinCONTACT 1815

Appropriate accessories

Panel mounted receptacle with TwinCONTACT 1815

MENNEKES Flange 41340

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369

MENNEKES Flush mounted installation box 40369

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136

MENNEKES Blanking flange 41419

Blanking flange

Part no. 41419

to close unused apertures, grey
