Show all Panel mounted receptacles / Show all Panel mounted receptacle with TwinCONTACT

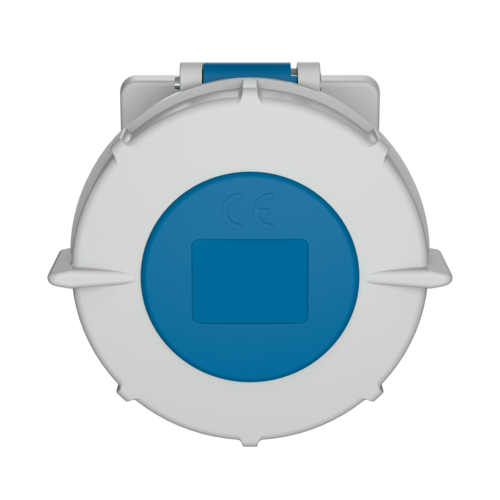

Panel mounted receptacle with TwinCONTACT 1810

Name: Panel mounted receptacle with TwinCONTACT
Brand: MENNEKES
SKU: 1810

Ampere 16 A 32 A

Poles

Voltage

Clock position

screwless spring terminals
suitable for through wiring

straight

Part no.1810
EAN4015394215189
Std. Pack. 10

Screwless - TwinCONTACT

Screwless spring terminals

Technical specifications

Panel mounted receptacle with TwinCONTACT 1810

Ampere	32 A
Poles	3 p
Voltage	230 V
Clock position	6 h
Hertz	50-60 Hz
Connection technology	Screwless - TwinCONTACT
Contact	standard
Protection type	IP67
Flange	85x75 mm
Fixing hole	60x60 mm
Weight	252 g
Certifications	VDE

Datasheets & Downloads

Panel mounted receptacle with TwinCONTACT 1810

Product infoPanel mounted receptacle with TwinCONTACT 1810 PDF, 155 KB

CAD data STPPanel mounted receptacle with TwinCONTACT 1810 ZIP, 2 MB

CAD data 3D DWGPanel mounted receptacle with TwinCONTACT 1810 ZIP, 5 MB

Dimensional drawing portraitPanel mounted receptacle with TwinCONTACT 1810 PNG, 93 KB

Dimensional drawing landscape formatPanel mounted receptacle with TwinCONTACT 1810 PNG, 94 KB

Directives

Panel mounted receptacle with TwinCONTACT 1810

REACh

RoHS

Appropriate accessories

Panel mounted receptacle with TwinCONTACT 1810

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369

Blanking flange

Part no. 41419

to close unused apertures, grey
