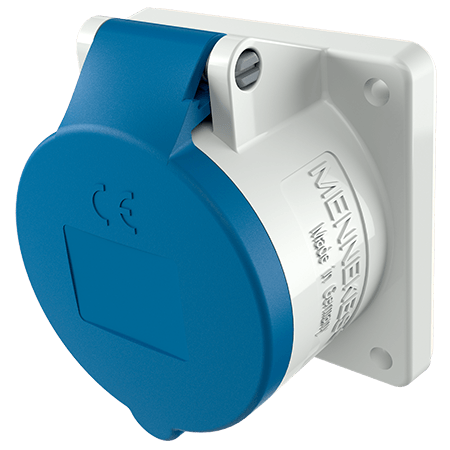

MENNEKES Panel mounted receptacle with TwinCONTACT 1796

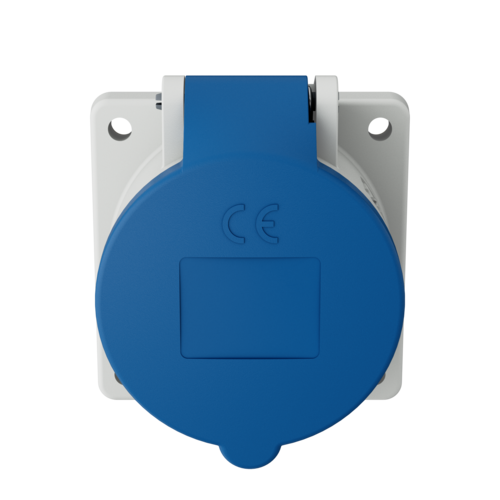

MENNEKES Panel mounted receptacle with TwinCONTACT 1796 images3d

Panel mounted receptacle with TwinCONTACT 1796

Poles
Voltage
Clock position
  • screwless spring terminals
  • suitable for through wiring
  • straight
  • Part no.1796
  • EAN4015394215028
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
TwinCONTACT

Screwless - TwinCONTACT

Screwless spring terminals

Technical specifications

Panel mounted receptacle with TwinCONTACT 1796

Ampere 32 A
Poles 5 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP44
Flange 75x75 mm
Fixing hole 60x60 mm
Weight 220 g
Certifications VDE

Directives

Panel mounted receptacle with TwinCONTACT 1796

Appropriate accessories

Panel mounted receptacle with TwinCONTACT 1796

MENNEKES Flush mounted installation box 40369

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136

MENNEKES Blanking flange 41419

Blanking flange

Part no. 41419

to close unused apertures, grey

MENNEKES Flange 41340

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369
