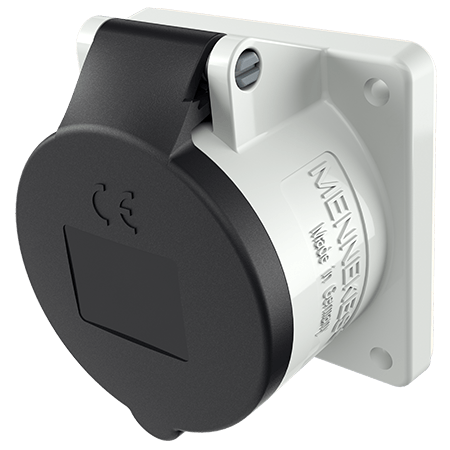

Panel mounted receptacle with TwinCONTACT 1792

Name: Panel mounted receptacle with TwinCONTACT
Brand: MENNEKES
SKU: 1792

Ampere 16 A 32 A

Poles

Voltage

Clock position

screwless spring terminals
suitable for through wiring

straight

Part no.1792
EAN4015394214984
Std. Pack. 10

Screwless - TwinCONTACT

Screwless spring terminals

Technical specifications

Panel mounted receptacle with TwinCONTACT 1792

Ampere	32 A
Poles	4 p
Voltage	500 V
Clock position	7 h
Hertz	50-60 Hz
Connection technology	Screwless - TwinCONTACT
Contact	standard
Protection type	IP44
Flange	75x75 mm
Fixing hole	60x60 mm
Weight	193 g
Certifications	EAC

Datasheets & Downloads

Panel mounted receptacle with TwinCONTACT 1792

Product infoPanel mounted receptacle with TwinCONTACT 1792 PDF, 187 KB

Dimensional drawing portraitPanel mounted receptacle with TwinCONTACT 1792 PNG, 34 KB

Dimensional drawing landscape formatPanel mounted receptacle with TwinCONTACT 1792 PNG, 35 KB

Directives

Panel mounted receptacle with TwinCONTACT 1792

REACh

RoHS

Appropriate accessories

Panel mounted receptacle with TwinCONTACT 1792

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369

Blanking flange

Part no. 41419

to close unused apertures, grey
