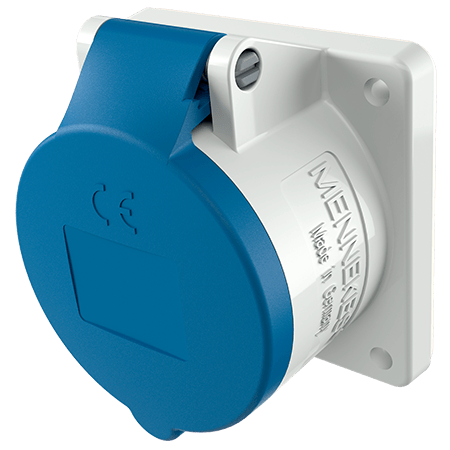

Panel mounted receptacle with TwinCONTACT 1787

Name: Panel mounted receptacle with TwinCONTACT
Brand: MENNEKES
SKU: 1787

Ampere 16 A 32 A

Poles

Voltage

Clock position

screwless spring terminals
suitable for through wiring

straight

Part no.1787
EAN4015394214939
Std. Pack. 10

Screwless - TwinCONTACT

Screwless spring terminals

Technical specifications

Panel mounted receptacle with TwinCONTACT 1787

Ampere	32 A
Poles	3 p
Voltage	230 V
Clock position	6 h
Hertz	50-60 Hz
Connection technology	Screwless - TwinCONTACT
Contact	standard
Protection type	IP44
Flange	75x75 mm
Fixing hole	60x60 mm
Weight	178 g
Certifications	VDE

Datasheets & Downloads

Panel mounted receptacle with TwinCONTACT 1787

Product infoPanel mounted receptacle with TwinCONTACT 1787 PDF, 172 KB

CAD data STPPanel mounted receptacle with TwinCONTACT 1787 ZIP, 1 MB

CAD data 3D DWGPanel mounted receptacle with TwinCONTACT 1787 ZIP, 2 MB

Dimensional drawing portraitPanel mounted receptacle with TwinCONTACT 1787 PNG, 34 KB

Dimensional drawing landscape formatPanel mounted receptacle with TwinCONTACT 1787 PNG, 35 KB

Directives

Panel mounted receptacle with TwinCONTACT 1787

REACh

RoHS

Appropriate accessories

Panel mounted receptacle with TwinCONTACT 1787

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369

Blanking flange

Part no. 41419

to close unused apertures, grey
