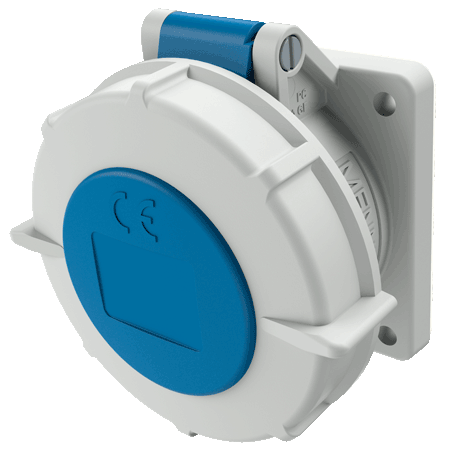

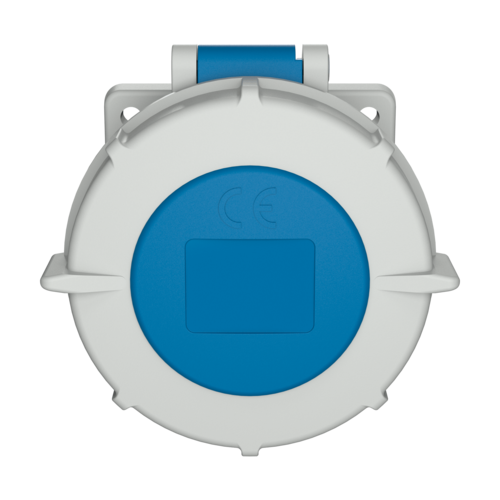

Panel mounted receptacle with TwinCONTACT 1717

Name: Panel mounted receptacle with TwinCONTACT
Brand: MENNEKES
SKU: 1717

Ampere 16 A 32 A

Poles

Voltage

Clock position

screwless spring terminals
suitable for through wiring

straight
blanking flange to close unused apertures part no. 41419

Part no.1717
EAN4015394214724
Std. Pack. 10

Screwless - TwinCONTACT

Screwless spring terminals

Technical specifications

Panel mounted receptacle with TwinCONTACT 1717

Ampere	16 A
Poles	5 p
Voltage	230 V
Clock position	9 h
Hertz	50-60 Hz
Connection technology	Screwless - TwinCONTACT
Contact	standard
Protection type	IP67
Flange	75x75 mm
Fixing hole	60x60 mm
Weight	190 g
Certifications	EAC

Datasheets & Downloads

Panel mounted receptacle with TwinCONTACT 1717

Product infoPanel mounted receptacle with TwinCONTACT 1717 PDF, 154 KB

Dimensional drawing portraitPanel mounted receptacle with TwinCONTACT 1717 PNG, 93 KB

Dimensional drawing landscape formatPanel mounted receptacle with TwinCONTACT 1717 PNG, 94 KB

Directives

Panel mounted receptacle with TwinCONTACT 1717

REACh

RoHS

Appropriate accessories

Panel mounted receptacle with TwinCONTACT 1717

Flange

Part no. 40102

for panel mounted receptacles: product group 1056 (screw terminals): all 16 A, 3 p to 5 p as well as 32 A, 5 p in special form (comp. type 1276) product group 1134 (screwless, TwinCONTACT): all 16 A, 3 p to 5 p

Blanking flange

Part no. 41419

to close unused apertures, grey

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136
