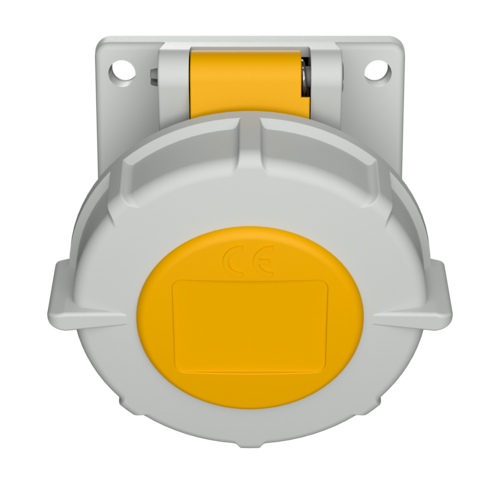

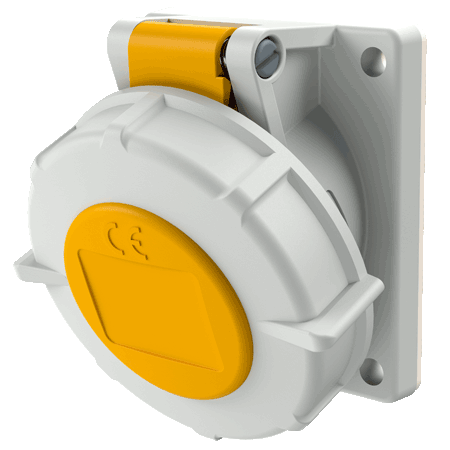

Panel mounted receptacle with TwinCONTACT 1700
Voltage
Clock position
- screwless spring terminals
- suitable for through wiring
- 20° inclination
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Technical specifications
Panel mounted receptacle with TwinCONTACT 1700
| Ampere | 16 A |
|---|---|
| Poles | 3 p |
| Voltage | 110 V |
| Clock position | 4 h |
| Hertz | 50-60 Hz |
| Connection technology | Screwless - TwinCONTACT |
| Contact | standard |
| Protection type | IP67 |
| Flange | 73.5x64 mm |
| Fixing hole | 60x52 mm |
| Inclination | 20 ° |
| Weight | 130 g |
| Certifications | EAC |
