Technical specifications

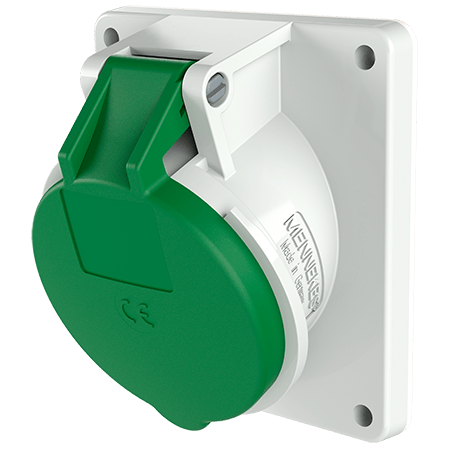

Panel mounted receptacle with TwinCONTACT 1640
| Ampere | 16 A |
|---|---|
| Poles | 4 p |
| Voltage | 50-500 V |
| Clock position | 10 h |
| Hertz | 100-300 Hz |
| Connection technology | Screwless - TwinCONTACT |
| Contact | standard |
| Protection type | IP44 |
| Flange | 100x92 mm |
| Fixing hole | 85x77 mm |
| Inclination | 20 ° |
| Weight | 420 g |
| Certifications | VDE |
