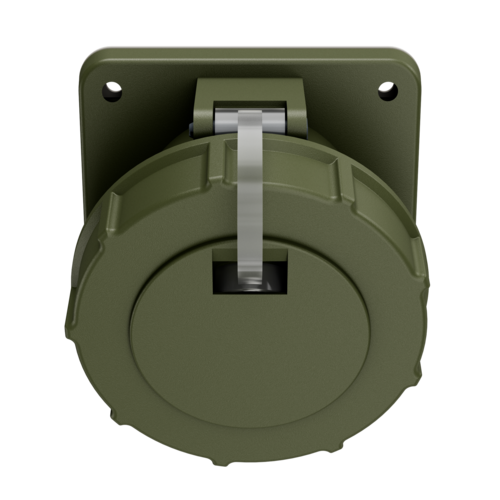

Panel mounted receptacle TM 24842
Voltage
Clock position
- screw terminals
- X-CONTACT
- highly heat resistant contact carrier
- nickel plated contacts
- 20° inclination
- (form BS)
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Technical specifications
Panel mounted receptacle TM 24842
| Ampere | 63 A |
|---|---|
| Poles | 5 p |
| Voltage | 440-460 V |
| Clock position | 11 h |
| Hertz | 60 Hz |
| Connection technology | Screw terminals |
| Contact |
highly heat resistant contact carrier nickel plated contacts X-CONTACT |
| Protection type | IP67 |
| Flange | 114x114 mm |
| Fixing hole | 90x90 mm |
| Inclination | 20 ° |
| Weight | 676 g |
| Certifications | EAC |
