MENNEKES Panel mounted receptacle SCHUKO® TM 17039

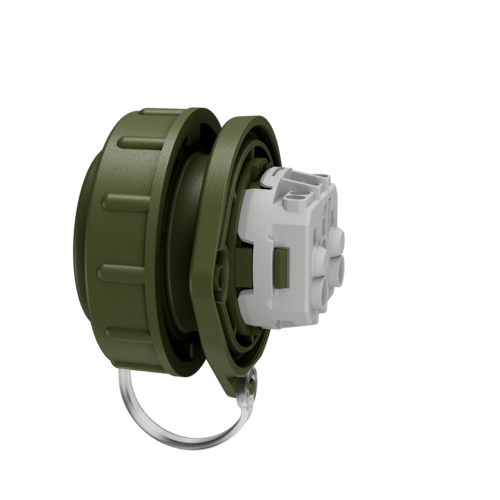

MENNEKES Panel mounted receptacle SCHUKO® TM 17039 images3d

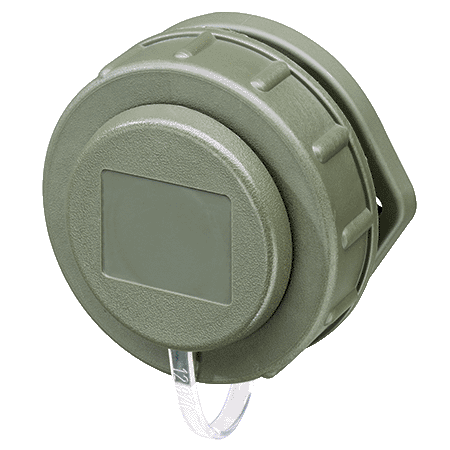

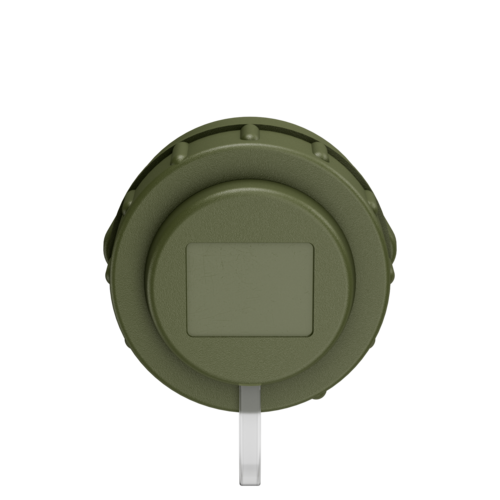

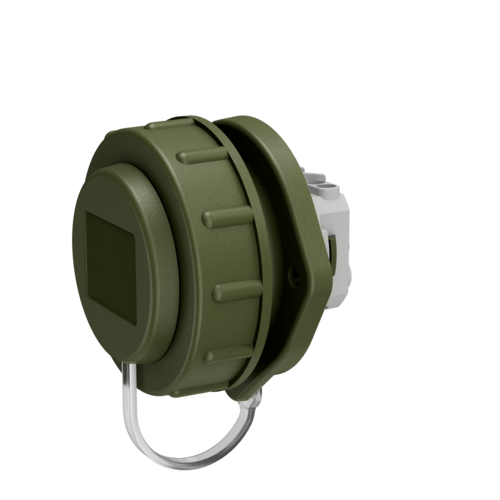

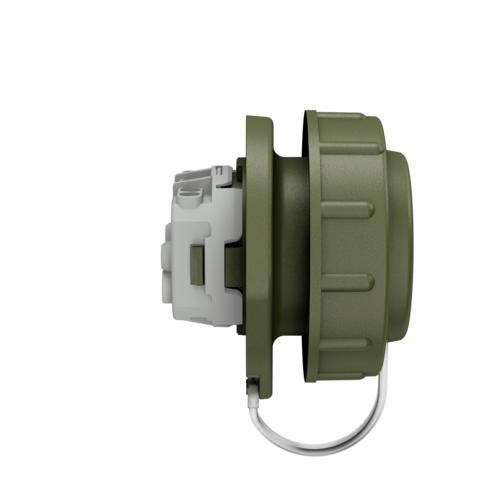

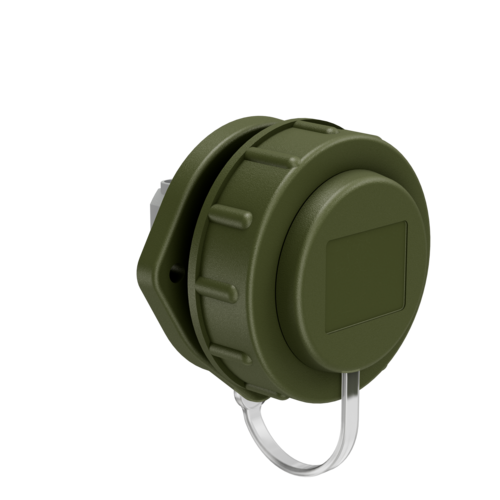

Panel mounted receptacle SCHUKO® TM 17039

Ampere 16 A
Poles
Voltage
  • bayonet ring lid attached by a strap
  • with oval flange
  • two fixing holes
  • form BS
  • connecting protective cap, part no. 19027706 available on request.
  • Part no.17039
  • EAN4015394287292
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle SCHUKO® TM 17039

Ampere 16 A
Poles 2 p+E
Voltage 230 V

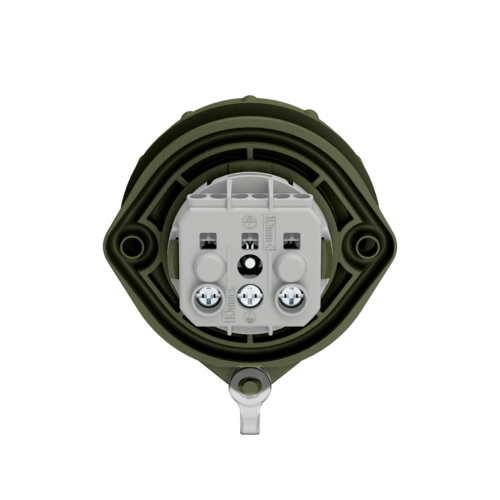

Connection technology Screw terminals
Contact standard
Protection type IP68
Shutter No
Weight 94 g
Certifications VDE

Directives

Panel mounted receptacle SCHUKO® TM 17039

Frequently asked questions about the product

Why are no seals supplied with panel-mounted SCHUKO® receptacles?

Our panel-mounted SCHUKO® receptacles have a moulded sealing lip and require no separate seal to guarantee that protection class IP44 requirements are met.
