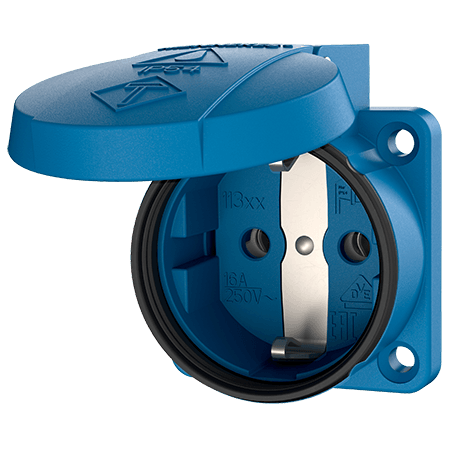

MENNEKES Panel mounted receptacle SCHUKO® 11331
MENNEKES Panel mounted receptacle SCHUKO® 11331 images3d

Panel mounted receptacle SCHUKO® 11331

Ampere 16 A
Poles
Voltage
  • for portable use
  • with front gasket
  • with hinged lid
  • 3 screw terminals as connecting terminals for 1.5 – 2.5 mm²
  • other colours on request
  • Part no.11331
  • EAN4015394257783
  • Std. Pack. 100

Technical specifications

Panel mounted receptacle SCHUKO® 11331

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Connection technology Screw terminals
Contact standard
Protection type IP54
Shutter No
Flange 50x50 mm
Fixing hole 38x38 mm
Weight 60 g
Certifications VDE

Directives

Panel mounted receptacle SCHUKO® 11331

Appropriate accessories

Panel mounted receptacle SCHUKO® 11331

MENNEKES Blanking flange 41418

Blanking flange

Part no. 41418

to close unused apertures, grey
