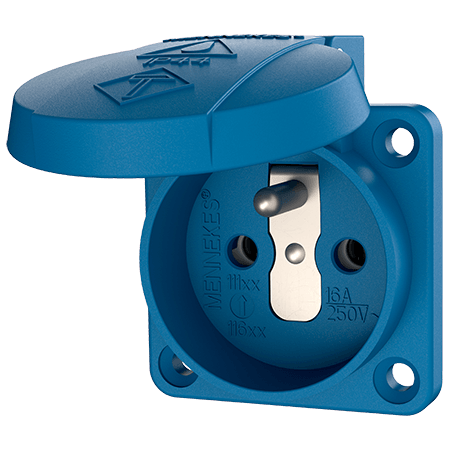

MENNEKES Panel mounted receptacle grounding-type 11131

Panel mounted receptacle grounding-type 11131

Ampere 16 A
Poles
Voltage
  • French/Belgian system (NF)
  • with hinged lid
  • 3 screw terminals as connecting terminals for 1.5 - 2.5 mm²
  • Part no.11131
  • EAN4015394184775
  • Std. Pack. 100
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle grounding-type 11131

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Connection technology Screw terminals
Contact standard
Protection type IP44
Shutter No
Flange 50x50 mm
Fixing hole 38x38 mm
Weight 46 g
Certifications EAC

Directives

Panel mounted receptacle grounding-type 11131

Appropriate accessories

Panel mounted receptacle grounding-type 11131

MENNEKES Base for wall mounted receptacle 10715

Base for wall mounted receptacle

Part no. 10715

with cable entry and screws, suitable for all panel mounted receptacles SCHUKO®/ grounding type receptacles, flange: 50 x 50 mm

MENNEKES Fixing frame 19266106

Fixing frame

Part no. 19266106

for swift and safe fastening of panel mounted receptacles

MENNEKES Blanking flange 41418

Blanking flange

Part no. 41418

to close unused apertures, grey
