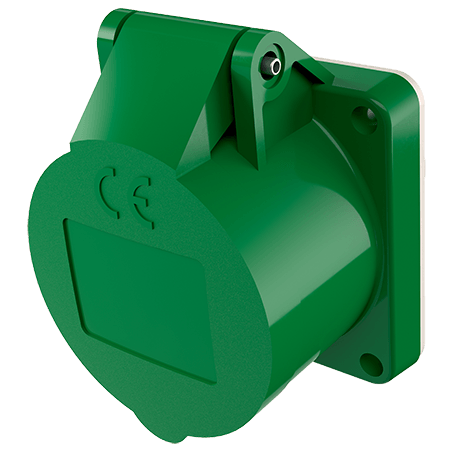

MENNEKES Panel mounted receptacle 625

Panel mounted receptacle 625

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • straight
  • Part no.625
  • EAN4015394004691
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 625

Ampere 32 A
Poles 3 p
Voltage 20-25, 40-50 V
Clock position 4 h
Hertz 100-200 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 55x55 mm
Fixing hole 45x45 mm
Weight 130 g
Certifications EAC

Datasheets & Downloads

Panel mounted receptacle 625

Product infoPanel mounted receptacle 625 PDF, 164 KB
Dimensional drawing portraitPanel mounted receptacle 625 PNG, 85 KB
Dimensional drawing landscape formatPanel mounted receptacle 625 PNG, 86 KB

Directives

Panel mounted receptacle 625

REACh
RoHS
