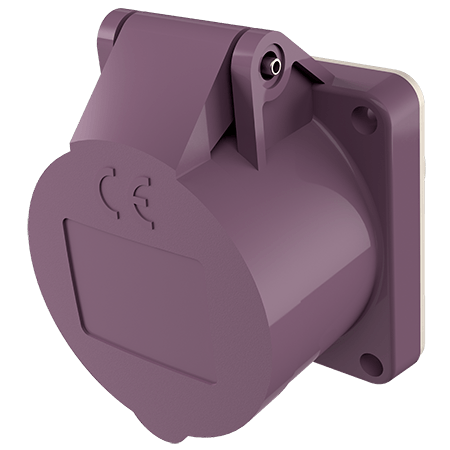

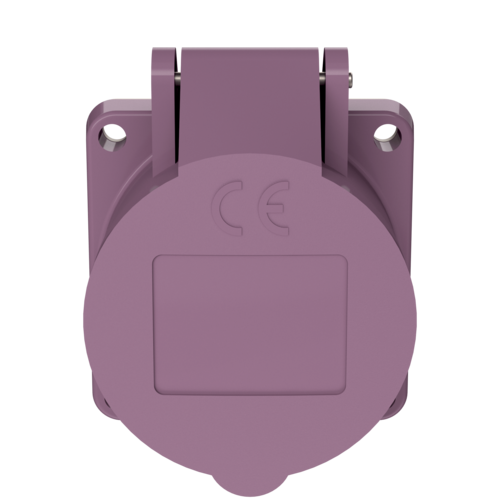

MENNEKES Panel mounted receptacle 623
MENNEKES Panel mounted receptacle 623 images3d

Panel mounted receptacle 623

Ampere 16 A 32 A
Poles
Voltage
  • screw terminals
  • straight
  • Part no.623
  • EAN4015394004677
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 623

Ampere 32 A
Poles 3 p
Voltage 20-25 V
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 55x55 mm
Fixing hole 45x45 mm
Weight 130 g
Certifications EAC

Datasheets & Downloads

Panel mounted receptacle 623

Product infoPanel mounted receptacle 623 PDF, 173 KB
CAD data STPPanel mounted receptacle 623 ZIP, 134 KB
CAD data 3D DWGPanel mounted receptacle 623 ZIP, 411 KB
Dimensional drawing portraitPanel mounted receptacle 623 PNG, 85 KB
Dimensional drawing landscape formatPanel mounted receptacle 623 PNG, 86 KB

Directives

Panel mounted receptacle 623

REACh
RoHS
