MENNEKES Panel mounted receptacle 603
MENNEKES Panel mounted receptacle 603 images3d

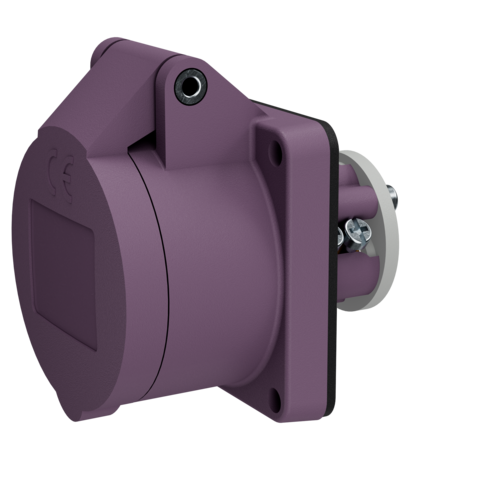

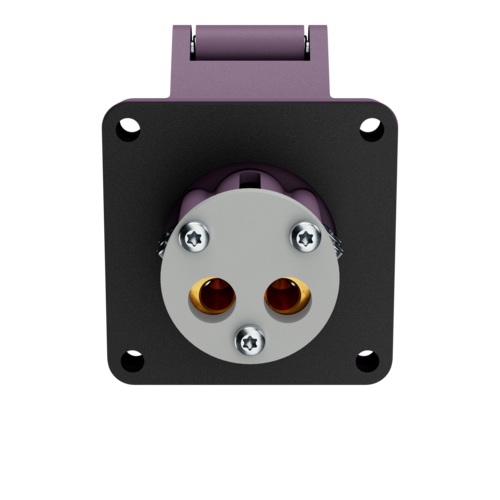

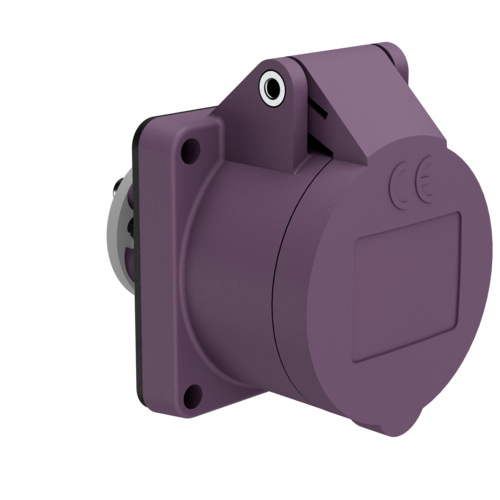

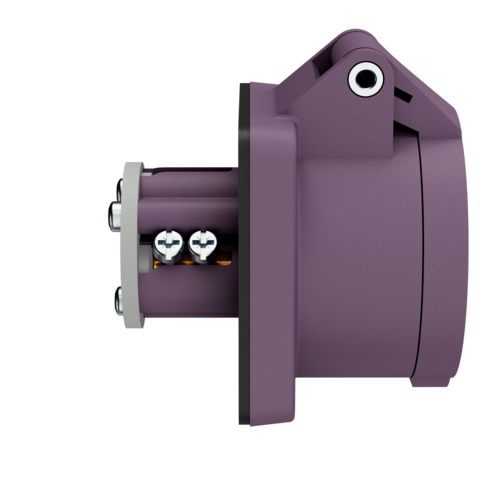

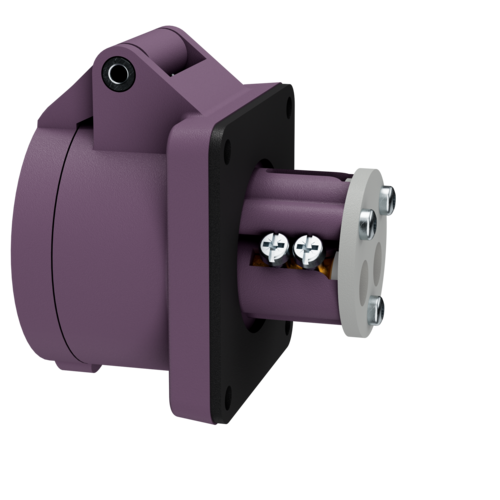

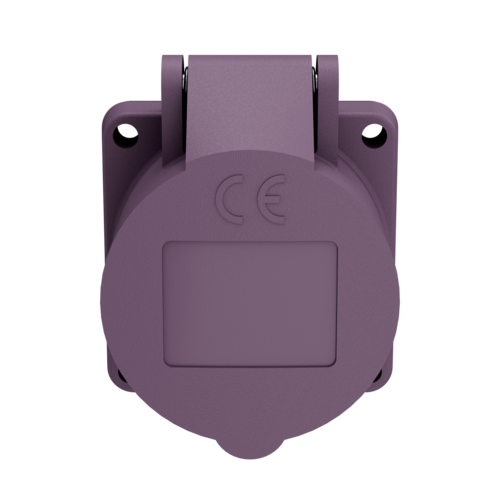

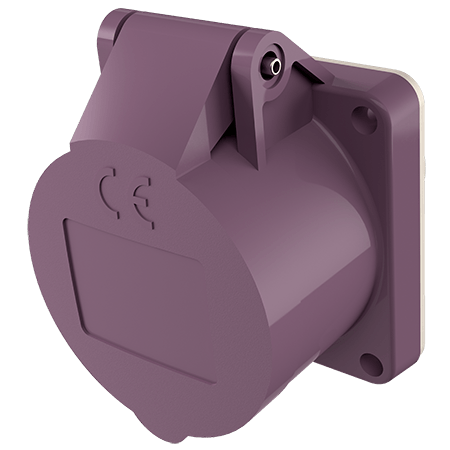

Panel mounted receptacle 603

Ampere 16 A 32 A
Poles
Voltage
  • screw terminals
  • straight
  • Part no.603
  • EAN4015394004462
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 603

Ampere 16 A
Poles 2 p
Voltage 20-25 V
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 55x55 mm
Fixing hole 45x45 mm
Weight 103 g
Certifications EAC

Datasheets & Downloads

Panel mounted receptacle 603

Product infoPanel mounted receptacle 603 PDF, 173 KB
Dimensional drawing portraitPanel mounted receptacle 603 PNG, 85 KB
Dimensional drawing landscape formatPanel mounted receptacle 603 PNG, 86 KB

Directives

Panel mounted receptacle 603

REACh
RoHS
