Show all DC / Show all Panel mounted receptacle

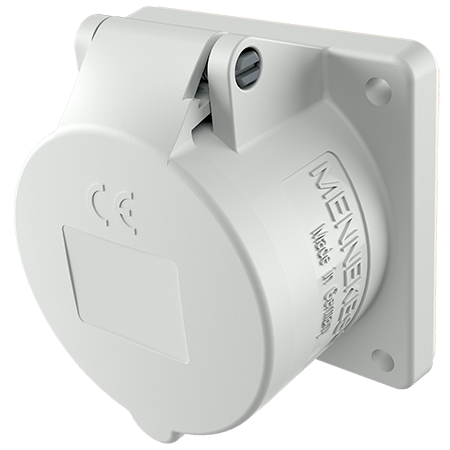

MENNEKES Panel mounted receptacle 3216

Panel mounted receptacle 3216

Ampere 16 A
Poles
Voltage
Clock position
  • screw terminals
  • straight
  • Part no.3216
  • EAN4015394018216
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 3216

Ampere 16 A
Poles 3 p
Voltage 50-250 V
Clock position 3 h
Hertz (DC)
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 75x75 mm
Fixing hole 60x60 mm
Weight 132 g
Certifications EAC

Datasheets & Downloads

Panel mounted receptacle 3216

Product infoPanel mounted receptacle 3216 PDF, 367 KB
Manufacturer‘s declarationPanel mounted receptacle 3216 PDF, 37 KB
Dimensional drawing portraitPanel mounted receptacle 3216 PNG, 262 KB
Dimensional drawing landscape formatPanel mounted receptacle 3216 PNG, 278 KB

Directives

Panel mounted receptacle 3216

REACh
RoHS

Appropriate accessories

Panel mounted receptacle 3216

MENNEKES Flush mounted installation box 40369

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136

more
MENNEKES Flange 41340

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369

more
