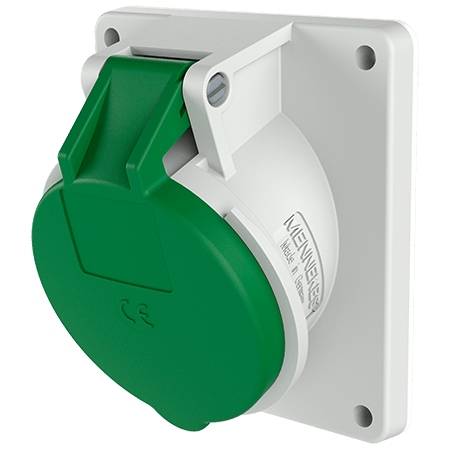

MENNEKES Panel mounted receptacle 3193

Panel mounted receptacle 3193

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • 20° inclination
  • receptacles optional fitted with auxiliary contact
  • Part no.3193
  • EAN4015394018087
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 3193

Ampere 32 A
Poles 5 p
Voltage 50-500 V
Clock position 2 h
Hertz 300-500 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 288 g
Certifications EAC

Datasheets & Downloads

Panel mounted receptacle 3193

Product infoPanel mounted receptacle 3193 PDF, 155 KB
Dimensional drawing portraitPanel mounted receptacle 3193 PNG, 49 KB
Dimensional drawing landscape formatPanel mounted receptacle 3193 PNG, 49 KB

Directives

Panel mounted receptacle 3193

REACh
RoHS
