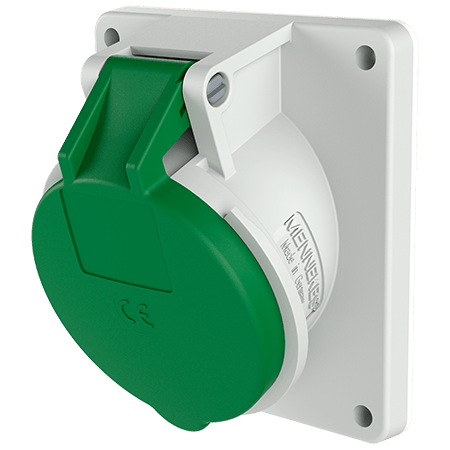

MENNEKES Panel mounted receptacle 3192

Panel mounted receptacle 3192

Poles
Voltage
Clock position
  • screw terminals
  • 20° inclination
  • receptacles optional fitted with auxiliary contact
  • Part no.3192
  • EAN4015394018070
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 3192

Ampere 32 A
Poles 5 p
Voltage 50-500 V
Clock position 10 h
Hertz 100-300 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 288 g
Certifications EAC

Directives

Panel mounted receptacle 3192
