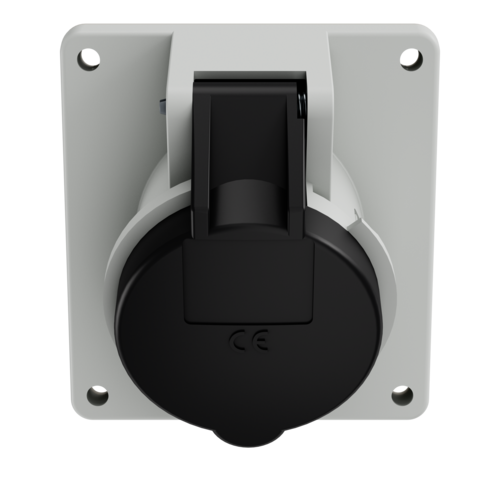

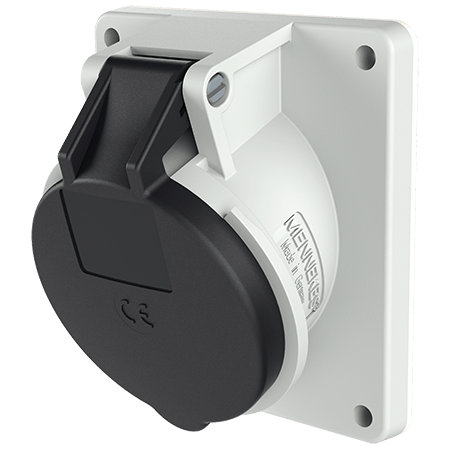

MENNEKES Panel mounted receptacle 3011
MENNEKES Panel mounted receptacle 3011 images3d

Panel mounted receptacle 3011

Poles
Voltage
Clock position
  • screw terminals
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.3011
  • EAN4015394097358
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 3011

Ampere 32 A
Poles 4 p
Voltage 600-690 V
Clock position 5 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 239 g
Certifications EAC
