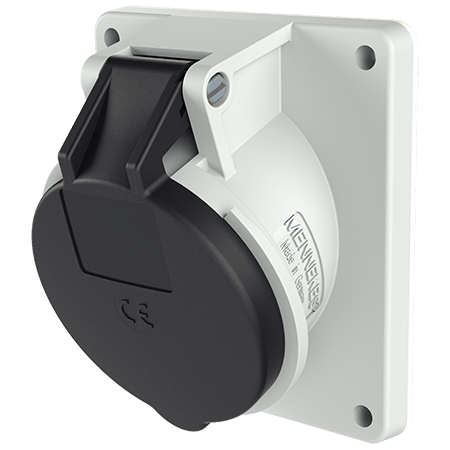

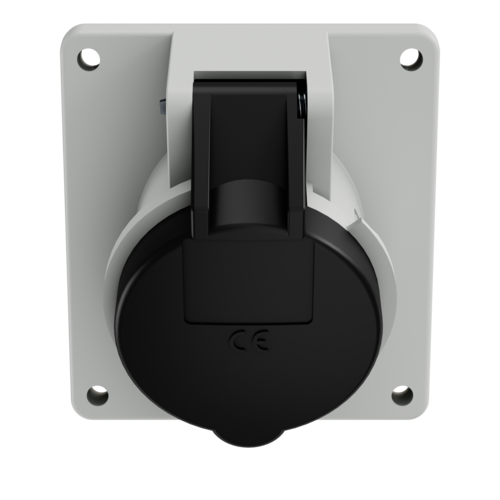

MENNEKES Panel mounted receptacle 3010
MENNEKES Panel mounted receptacle 3010 images3d

Panel mounted receptacle 3010

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • Part no.3010
  • EAN4015394097341
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 3010

Ampere 16 A
Poles 4 p
Voltage 600-690 V
Clock position 5 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 177 g
Certifications EAC

Datasheets & Downloads

Panel mounted receptacle 3010

Product infoPanel mounted receptacle 3010 PDF, 167 KB
Dimensional drawing portraitPanel mounted receptacle 3010 PNG, 49 KB
Dimensional drawing landscape formatPanel mounted receptacle 3010 PNG, 49 KB

Directives

Panel mounted receptacle 3010

REACh
RoHS
