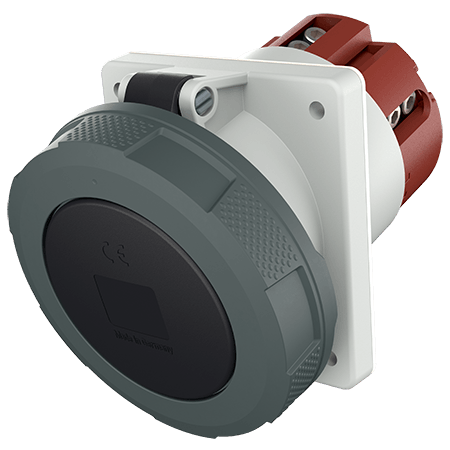

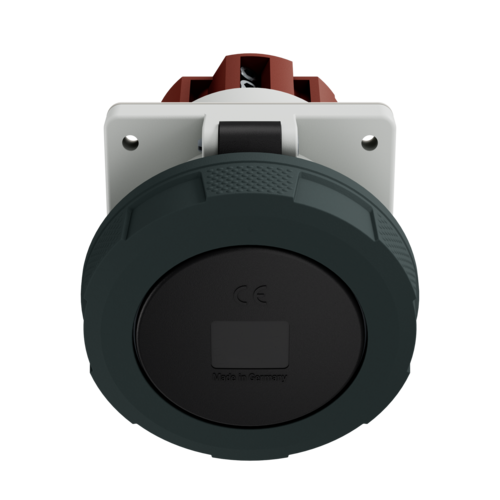

Panel mounted receptacle 2546P
Ampere
125 A
Poles
Voltage
Clock position
- screw terminals
- with pilot contact
- X-CONTACT
- highly heat resistant contact carrier
- 15° inclination
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Technical specifications
Panel mounted receptacle 2546P
| Ampere | 125 A |
|---|---|
| Poles | 5 p |
| Voltage | 600-690 V |
| Clock position | 5 h |
| Hertz | 50-60 Hz |
| Connection technology | Screw terminals |
| Contact |
highly heat resistant contact carrier X-CONTACT |
| Protection type | IP67 |
| Flange | 114x110 mm |
| Fixing hole | 90x90 mm |
| Inclination | 15 ° |
| Weight | 1050 g |
| Certifications | EAC |
Videos
Panel mounted receptacle 2546P
