Show all Panel mounted receptacles / Show all Panel mounted receptacle

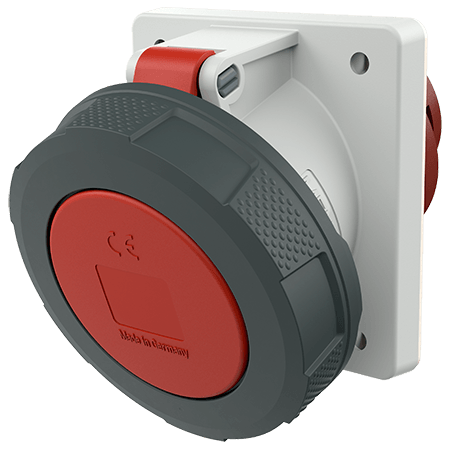

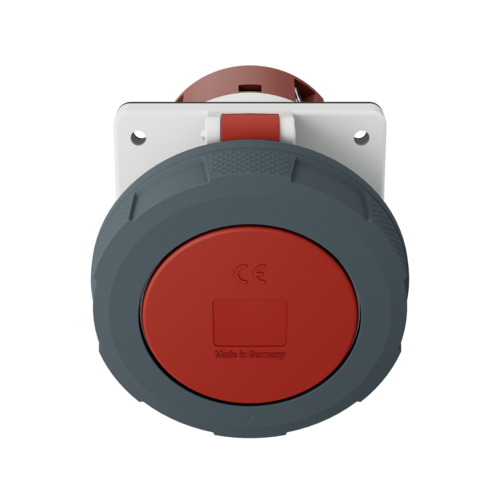

MENNEKES Panel mounted receptacle 212A
MENNEKES Panel mounted receptacle 212A images3d

Please accept marketing-cookies to watch this video.

Video varieties

Panel mounted receptacle 212A

Ampere 63 A 125 A
Poles
Voltage
Clock position
  • screw terminals
  • X-CONTACT
  • 15° inclination
  • receptacles with pilot contact: part no. + index P
  • Part no.212A
  • EAN4015394000945
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Read more

Technical specifications

Panel mounted receptacle 212A

Ampere 125 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP67
Flange 114x110 mm
Fixing hole 90x90 mm
Inclination 15 °
Weight 940 g
Certifications VDE

Datasheets & Downloads

Panel mounted receptacle 212A

Product infoPanel mounted receptacle 212A PDF, 182 KB
CAD data STPPanel mounted receptacle 212A ZIP, 1,001 KB
CAD data 3D DWGPanel mounted receptacle 212A ZIP, 2 MB
Dimensional drawing portraitPanel mounted receptacle 212A PNG, 108 KB
Dimensional drawing landscape formatPanel mounted receptacle 212A PNG, 109 KB

Videos

Panel mounted receptacle 212A

Please accept marketing-cookies to watch this video.

Video varieties

Directives

Panel mounted receptacle 212A

REACh
RoHS
