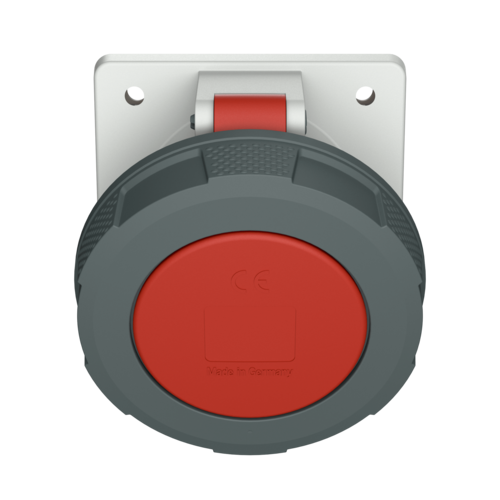

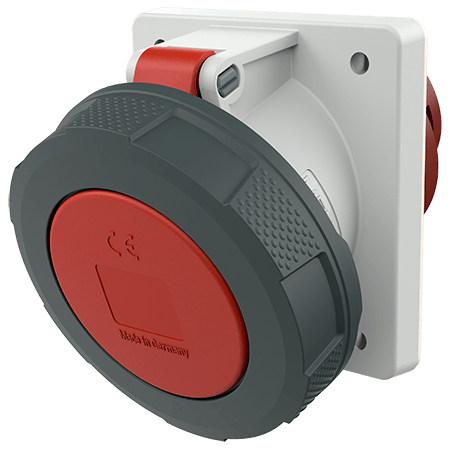

MENNEKES Panel mounted receptacle 209A
MENNEKES Panel mounted receptacle 209A images3d

Please accept marketing-cookies to watch this video.

Video varieties

Panel mounted receptacle 209A

Ampere 63 A 125 A
Poles
Voltage
Clock position
  • screw terminals
  • X-CONTACT
  • 20° inclination
  • products with pilot contact on request
  • Part no.209A
  • EAN4015394000891
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Read more

Technical specifications

Panel mounted receptacle 209A

Ampere 63 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP67
Flange 110x106 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 670 g
Certifications VDE

Datasheets & Downloads

Panel mounted receptacle 209A

Product infoPanel mounted receptacle 209A PDF, 183 KB
Manufacturer‘s declarationPanel mounted receptacle 209A PDF, 37 KB
CAD data STPPanel mounted receptacle 209A ZIP, 1 MB
CAD data 3D DWGPanel mounted receptacle 209A ZIP, 3 MB
Dimensional drawing portraitPanel mounted receptacle 209A PNG, 108 KB
Dimensional drawing landscape formatPanel mounted receptacle 209A PNG, 109 KB

Videos

Panel mounted receptacle 209A

Please accept marketing-cookies to watch this video.

Video varieties

Directives

Panel mounted receptacle 209A

REACh
RoHS
