MENNEKES Panel mounted receptacle 1502
MENNEKES Panel mounted receptacle 1502 images3d

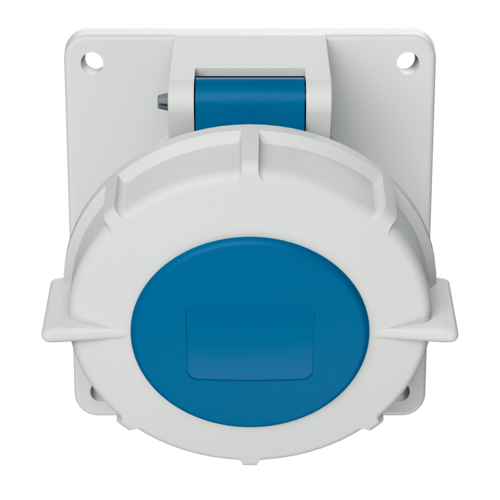

Panel mounted receptacle 1502

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • 20° inclination
  • receptacles optional fitted with auxiliary contact
  • Part no.1502
  • EAN4015394011675
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 1502

Ampere 32 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 281 g
Certifications VDE

Datasheets & Downloads

Panel mounted receptacle 1502

Product infoPanel mounted receptacle 1502 PDF, 189 KB
Manufacturer‘s declarationPanel mounted receptacle 1502 PDF, 37 KB
CAD data STPPanel mounted receptacle 1502 ZIP, 1 MB
CAD data 3D DWGPanel mounted receptacle 1502 ZIP, 3 MB
Dimensional drawing portraitPanel mounted receptacle 1502 PNG, 99 KB
Dimensional drawing landscape formatPanel mounted receptacle 1502 PNG, 100 KB

Directives

Panel mounted receptacle 1502

REACh
RoHS
