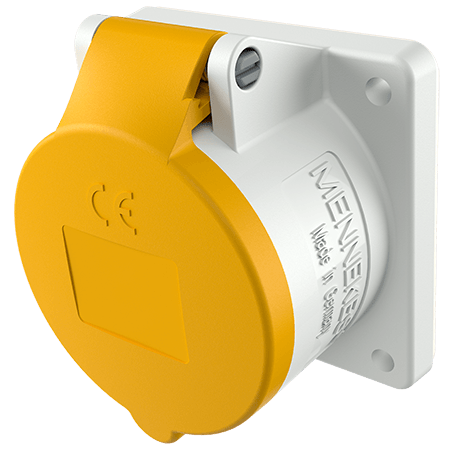

MENNEKES Panel mounted receptacle 1365

Panel mounted receptacle 1365

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • straight
  • Part no.1365
  • EAN4015394009863
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 1365

Ampere 16 A
Poles 3 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 75x75 mm
Fixing hole 60x60 mm
Weight 137 g
Certifications EAC

Datasheets & Downloads

Panel mounted receptacle 1365

Product infoPanel mounted receptacle 1365 PDF, 151 KB
Dimensional drawing portraitPanel mounted receptacle 1365 PNG, 45 KB
Dimensional drawing landscape formatPanel mounted receptacle 1365 PNG, 45 KB

Directives

Panel mounted receptacle 1365

REACh
RoHS

Appropriate accessories

Panel mounted receptacle 1365

MENNEKES Flange 40102

Flange

Part no. 40102

for panel mounted receptacles: product group 1056 (screw terminals): all 16 A, 3 p to 5 p as well as 32 A, 5 p in special form (comp. type 1276) product group 1134 (screwless, TwinCONTACT): all 16 A, 3 p to 5 p

more
MENNEKES Flange 41340

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369

more
MENNEKES Flush mounted installation box 40369

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136

more
